Have you ever wondered how ports move massive containers so quickly? It’s not magic—it’s the reach stacker. These powerful machines play a key role in lifting, moving, and stacking containers. They keep goods moving in ports, terminals, and warehouses every day. In this post, you’ll learn what a reach stacker does, why it's important in logistics, and how it improves container handling operations worldwide.

What is a Reach Stacker?

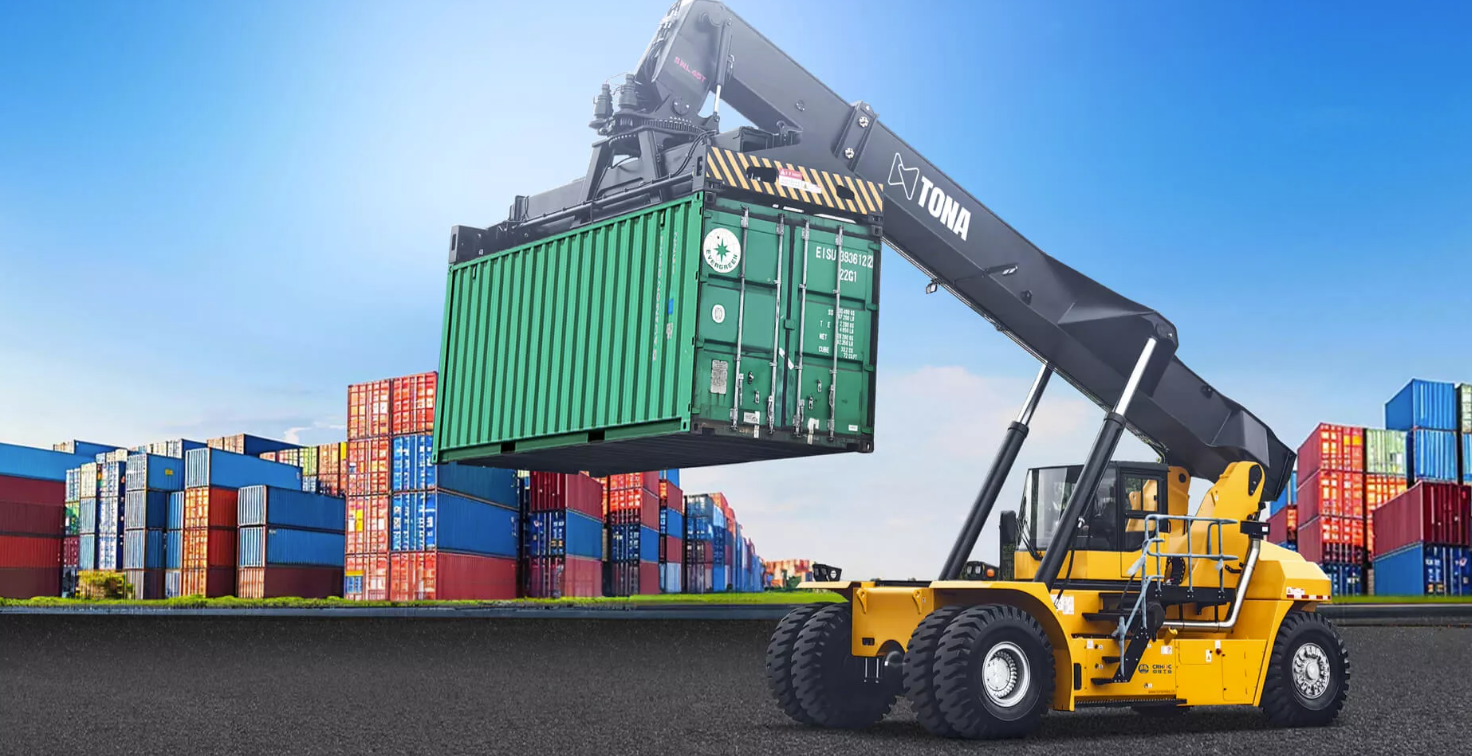

A reach stacker is a heavy-duty vehicle used to lift, move, and stack shipping containers. You’ll find it in ports, rail yards, or large storage areas. Its main job? To move containers quickly and safely between different spots.

Main Components of a Reach Stacker

• Hydraulic Arm: Lifts and extends to reach container rows.

• Spreader: Locks onto container corners for a firm hold.

• Cab: Where the operator sits, with controls and safety systems.

• Wheels & Chassis: Heavy-duty parts that provide balance and mobility.

Reach stackers come in a few styles. The manual type is often smaller. It works well indoors or in tight spaces, but it’s better for light loads. The electric reach stacker runs on batteries. It’s cleaner, quieter, and ideal for warehouses or emission-restricted zones.

What Makes a Reach Stacker Different from Other Lifting Equipment?

You might think forklifts or cranes could do the same job. But reach stackers do it better in many ways. Forklifts are great for small jobs. They’re easy to drive, but they can't lift containers very high.

Cranes can reach higher, sure—but they’re fixed in place and take time to set up. Not very flexible. Reach stackers do both. They move like trucks, lift like cranes, and don’t need rails or tracks. That makes them perfect for busy, space-limited environments like ports or logistics hubs.

Let’s break down why they stand out:

• They reach over multiple container rows. That’s something forklifts can’t do.

• They lift up to 45 tons. Perfect for heavy-duty loads.

• They drive smoothly in tight spaces. Great for crowded yards.

• They switch between jobs fast. Load a truck, stack a container, move to the next one—all in minutes.

So, if you need power, reach, and speed in one machine, a reach stacker checks all the boxes.

Key Functions of a Reach Stacker

Reach stackers are designed to handle heavy-duty tasks that involve moving and stacking large containers. Let’s explore their primary functions.

Container Handling

Reach stackers are built to handle a variety of container sizes and weights.

They can lift containers ranging from small, standard 20-foot units to large 40-foot and high-cube containers. The hydraulic system and spreader ensure safe lifting and precise positioning. This versatility allows reach stackers to be used in any container-handling situation, from ports to warehouses.

Loading and Unloading

One of the most crucial functions of a reach stacker is loading and unloading containers.

They are used to transfer containers onto trucks, railway wagons, or ships. The spreader grabs the container securely and, with the help of the hydraulic arm, positions it for efficient loading. Reach stackers can perform this task quickly and safely, reducing downtime in high-traffic areas.

Stacking Containers

Reach stackers can stack containers multiple layers high.

This is particularly useful in ports and storage yards where space is limited. They lift containers with ease, placing them atop one another in a safe and stable manner. With the ability to stack up to 5 containers high, reach stackers help maximize the available vertical space and improve overall storage efficiency.

Transportation of Containers

Besides stacking, reach stackers are also used to transport containers within yards.

They move containers from one location to another, such as from loading docks to storage areas, or between different transport modes (e.g., from ship to rail). This capability is essential for smooth operations in busy logistics environments where speed and flexibility are key.

How Does a Reach Stacker Stack Containers So High?

Reach stackers stack containers with the help of their hydraulic arm and spreader system.

The hydraulic arm extends and lifts the container, while the spreader securely locks onto the container’s corners. This allows the stacker to reach over multiple rows and place containers up to several levels high.

Safety features such as anti-tip mechanisms ensure that even when stacking at high levels, the operation remains stable and secure.

How Flexible Are Reach Stackers in Different Operational Environments?

Reach stackers are incredibly flexible and can adapt to a wide variety of environments.

They work well in port terminals, freight yards, warehouses, and even intermodal transport hubs. The ability to move containers from one mode of transport to another is crucial in logistics.

Furthermore, reach stackers can handle different container types, including standard, refrigerated, and flat-rack containers, making them versatile for all kinds of cargo.

The Technology Behind Reach Stackers

Reach stackers are equipped with advanced technologies that make them efficient, powerful, and safe. Let’s dive into the key technologies that drive their performance.

Hydraulic System

The hydraulic system is what gives the reach stacker its lifting power.

The hydraulic arm works by using fluid pressure to move the arm and spreader. This system allows the machine to lift and place containers, even heavy ones, with great precision. The hydraulic arms extend, retract, and move smoothly, helping the operator position containers with ease and accuracy.

This technology allows the reach stacker to handle heavy containers up to 45 tons, making it suitable for large-scale operations. It ensures that containers are moved safely and securely, preventing tipping or damage during lifting.

Operator Control

The operator controls the reach stacker through both manual and automated systems.

In traditional setups, operators use joysticks and levers to control the hydraulic arm and the spreader. However, newer models feature automated control systems that enhance the precision and speed of container handling.

• Manual Control: Involves hands-on operation with joysticks or levers.

• Automated Control: Offers ease of operation with sensors, cameras, and remote features. Some advanced reach stackers have remote operation capabilities, allowing the machine to be controlled from a distance, improving safety in hazardous environments. Sensors and cameras help monitor surroundings, providing operators with clearer visibility of blind spots.

Stability Features

Safety is a top priority when operating such powerful machinery. Reach stackers are designed with stability systems and anti-tip devices to ensure safe operation, especially when handling heavy or high-stacked containers. These features automatically adjust the machine's balance to prevent tipping or instability during operations.

• Load Moment Indicators (LMI): Alerts operators when the load is too heavy or off-center, preventing unsafe lifting.

• Anti-Tip Mechanisms: Help stabilize the stacker and prevent it from tipping over during container handling.

How Do Modern Reach Stackers Integrate Automation and Technology?

Modern reach stackers are increasingly equipped with automation to improve both efficiency and safety.

Automation systems reduce human error and increase the speed of operations. They use data collection tools to track container movement, monitor machine performance, and predict maintenance needs. Some systems even allow for remote operation, where operators can control the stacker from a safe distance, particularly in high-risk areas.

With the help of automation, reach stackers can perform tasks faster and with greater precision, making them a vital tool in busy logistics environments.

How Does the Hydraulic System Improve Reach Stacker Performance?

The hydraulic system plays a huge role in a reach stacker's ability to lift and move containers efficiently.

The hydraulic arm, powered by pressurized fluid, provides the force needed to lift heavy containers while maintaining control. The smooth movement enabled by the hydraulic system reduces the risk of jerky motions, ensuring containers are positioned precisely and safely.

By using hydraulics, reach stackers can handle various container sizes and weights, making them highly adaptable in container yards. Precision and safety are improved because the hydraulic system offers fine-tuned control over the lifting and lowering motions.

How Reach Stackers Improve Logistics and Port Efficiency

Reach stackers play a vital role in boosting the efficiency of logistics and port operations. They not only move containers but also optimize storage space and accelerate container processing. Let’s explore how they make a difference.

How Can Reach Stackers Maximize Storage Space in Port Yards?

One of the key advantages of reach stackers is their ability to maximize storage space in port yards.

Reach stackers can stack containers up to five or more levels high. This ability is crucial in environments where space is limited, like busy ports or terminals. By stacking containers efficiently, they increase storage capacity by up to 30%, allowing ports to handle more cargo without expanding their physical footprint.

Real-world examples show how effective this can be. At the Port of Shanghai, for example, implementing reach stackers helped boost container storage efficiency. Containers that would have otherwise occupied extra space can now be stacked higher, making room for more containers. The extra space reduces congestion, speeds up loading times, and ultimately makes the whole port operation more efficient.

How Do Reach Stackers Contribute to Faster Container Turnaround Times?

Reach stackers also accelerate container turnaround times, which is crucial for reducing the time ships and trucks spend waiting.

They help speed up loading and unloading by quickly moving containers from ships, trucks, or trains. This reduces container dwell times, meaning containers spend less time waiting in the yard and more time being transported to their next destination.

In terms of intermodal transport, reach stackers shine. They transfer containers between ships, trucks, and trains, improving efficiency in intermodal hubs. For instance, at European rail terminals, reach stackers have reduced transfer times by 15%, ensuring faster connections between transport modes. This improves the overall flow of goods, reducing delays and increasing throughput.

By moving containers efficiently between transport modes and reducing storage times, reach stackers keep the logistics cycle moving smoothly and faster than ever before.

Conclusion

Reach stackers are essential for efficiently handling, stacking, and transporting containers in busy logistics environments. They maximize storage, reduce turnaround times, and improve operational efficiency.

Investing in a high-quality reach stacker can transform port operations, boosting productivity and reducing costs. As automation and technology advance, reach stackers will continue to play a crucial role in global supply chains, improving speed and safety.

FAQ

Q: What is the main function of a reach stacker?

A: A reach stacker lifts, moves, and stacks containers in ports, yards, and terminals.

Q: How high can a reach stacker stack containers?

A: Most can stack containers up to five or more levels high, optimizing storage space.

Q: What powers a reach stacker?

A: Reach stackers use hydraulic systems and may be diesel-powered, electric, or hybrid.

Q: Where are reach stackers commonly used?

A: They are used in ports, rail yards, storage terminals, and logistics hubs.

Q: Are reach stackers safe to operate?

A: Yes. They have stability systems, anti-tip devices, and require trained operators.
