TR4545

Reach Stacker

Rated load
45t/45t/40t (The 1st row / The 2nd/ The 3rd)
Wheel base
8000mm
Overall weight
96.5t

Applicable Place

Ports, Docks, Railway Transfer Stations
Inquire

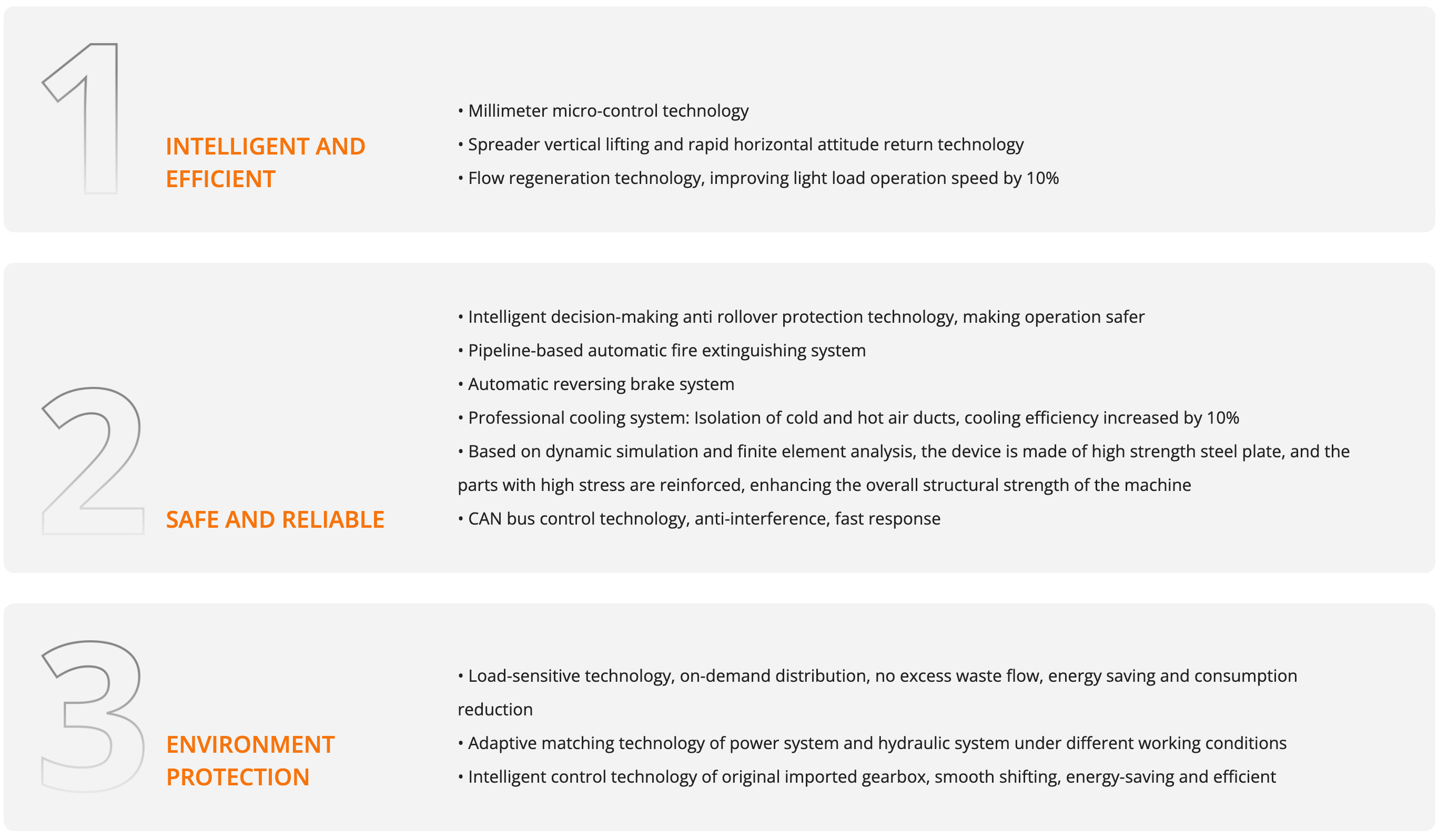

The TONA TR4545 ultra-heavy-duty Reach Stacker is specifically optimized for railway applications, with a maximum lifting capacity of 45 tons in both the first and second rows, enabling efficient cross-rail operations. Its exceptional second-row lifting capability allows it to handle more specialized lifting tasks. Equipped with multiple core technologies such as intelligent anti-tipping protection, automatic fire suppression, vertical load lifting, and rapid horizontal posture recovery, the TR4545 boasts superior reliability, high-end configurations, advanced control systems, and comprehensive safety protection features, making it an ideal choice for demanding railway environments.

图案科技_正面吊01
product-1
微信图片_20241031154546-1

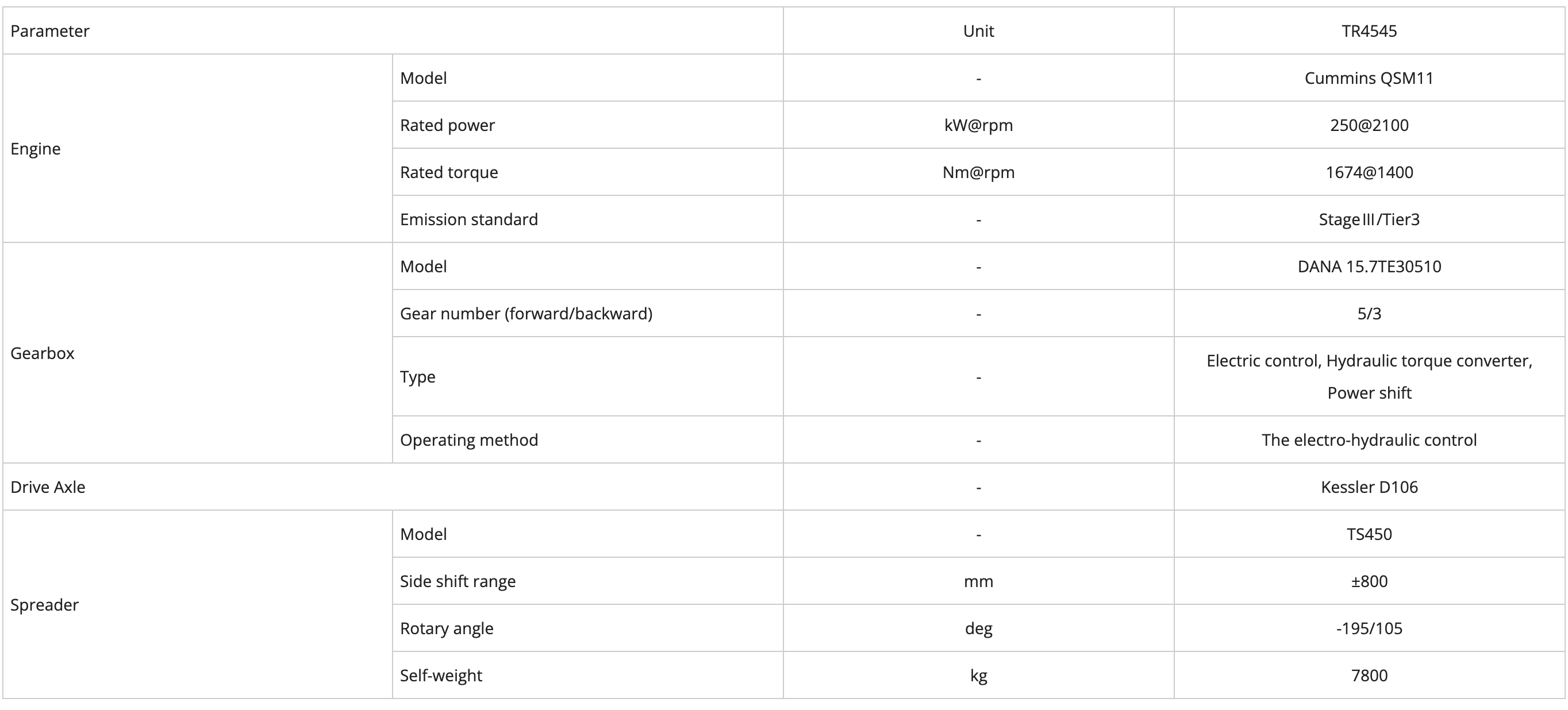

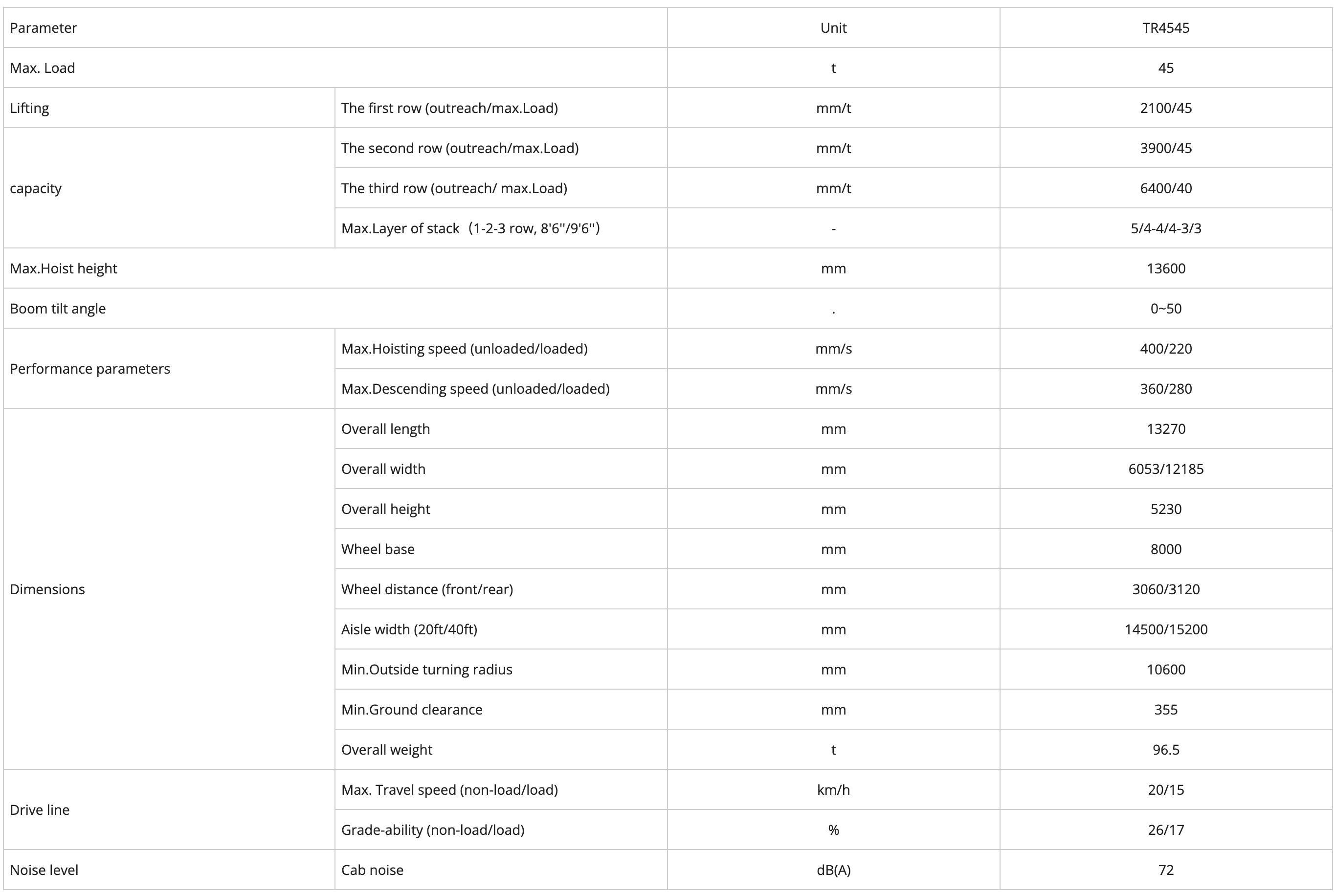

TECHNICAL PARAMETER

TECHNICAL PARAMETER

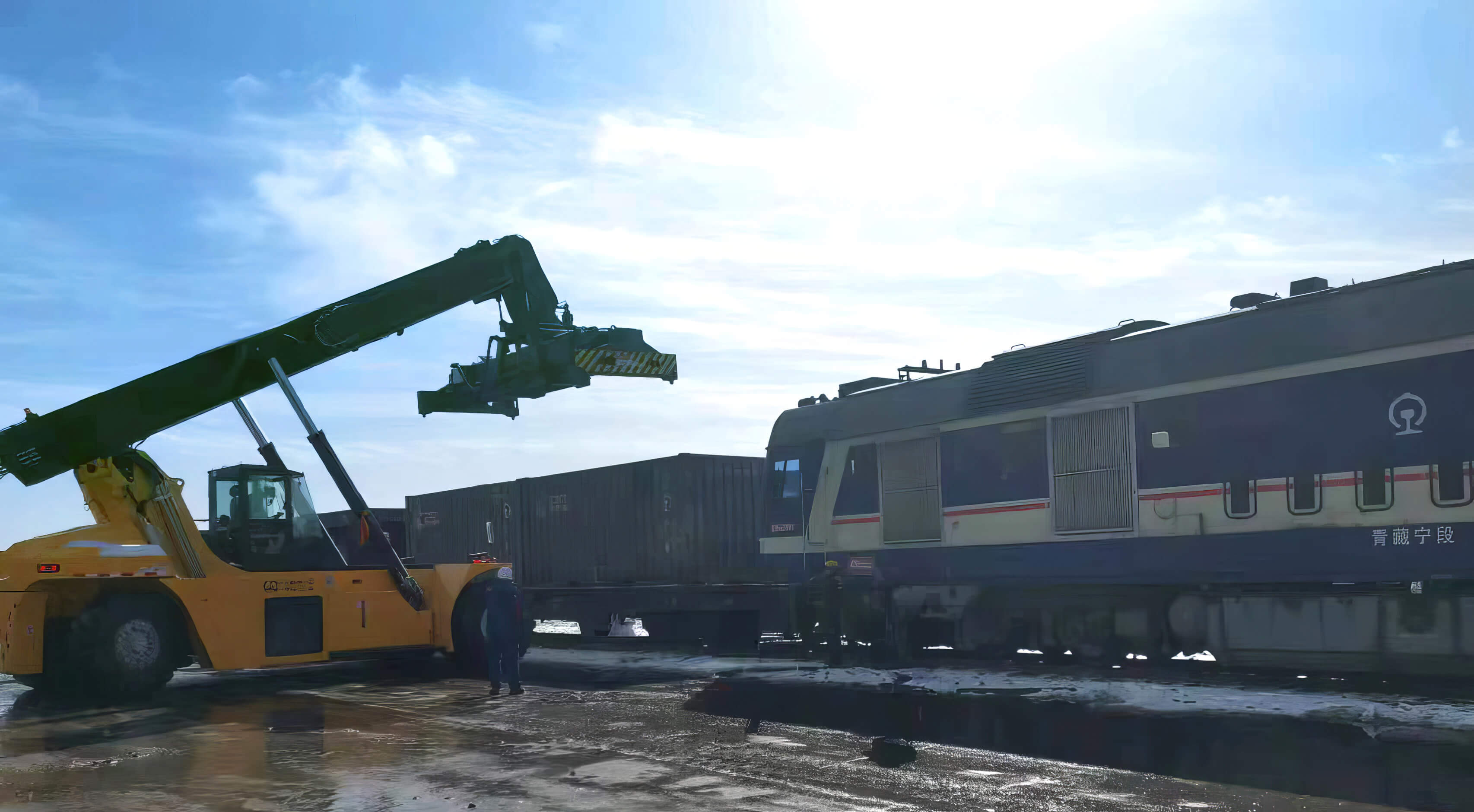

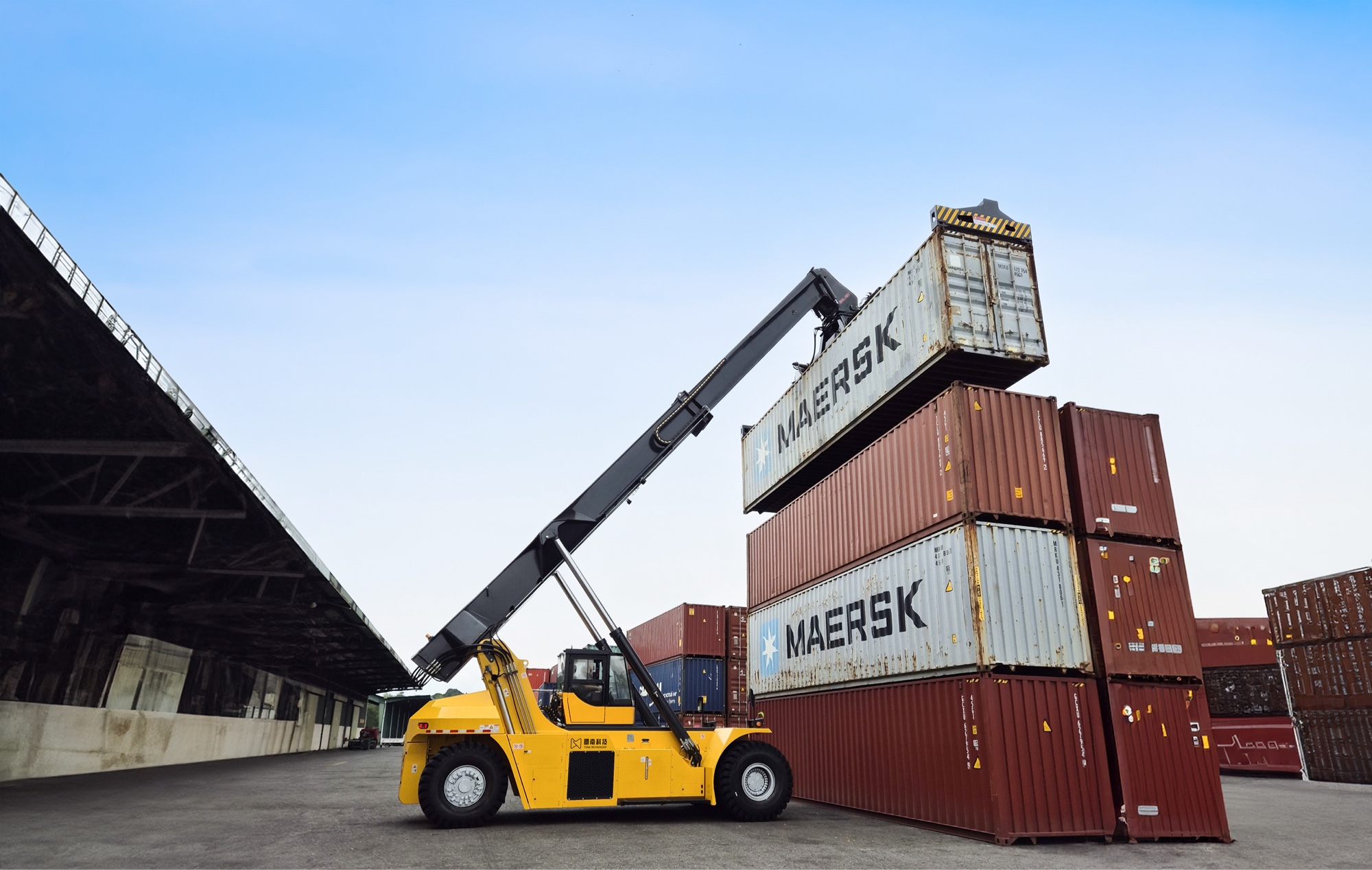

CONSTRUCTION CASES

图案科技_正面吊02 (1)
product-3
product-5
product-4
