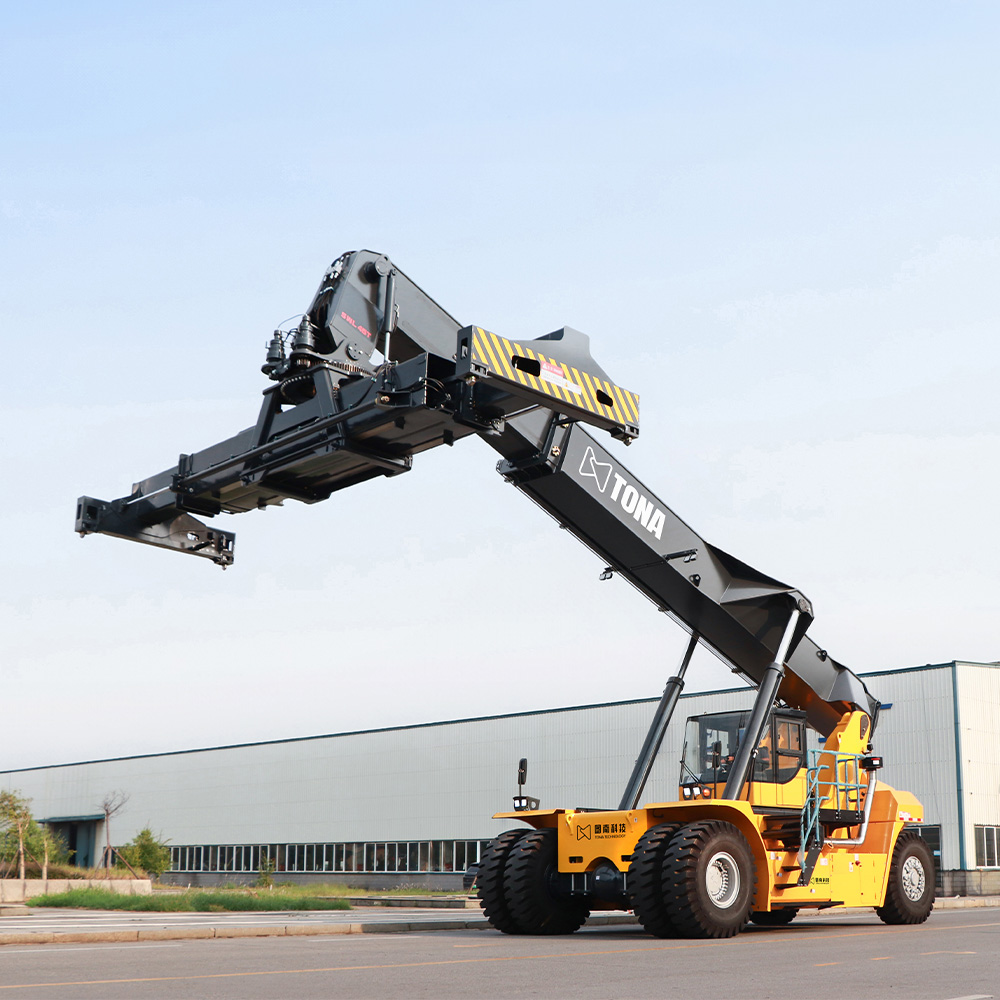

Home Reach Stacker TR45

TR45

Reach Stacker

Rated load

45t/31t/15t

(The 1st row / The 2nd/ The 3rd)

Wheel base

6000mm

Overall weight

72t

Applicable Place

Ports, Docks, Railway Transfer Stations

Max.Hoist height

15100mm

Rated load

45t

Wheel base

6000mm

Max.Hoist height

15100mm

Rated load

45t

Wheel base

6000mm

Max.Hoist height

15100mm

Rated load

45t

Wheel base

6000mm

Inquire

Product Introduction

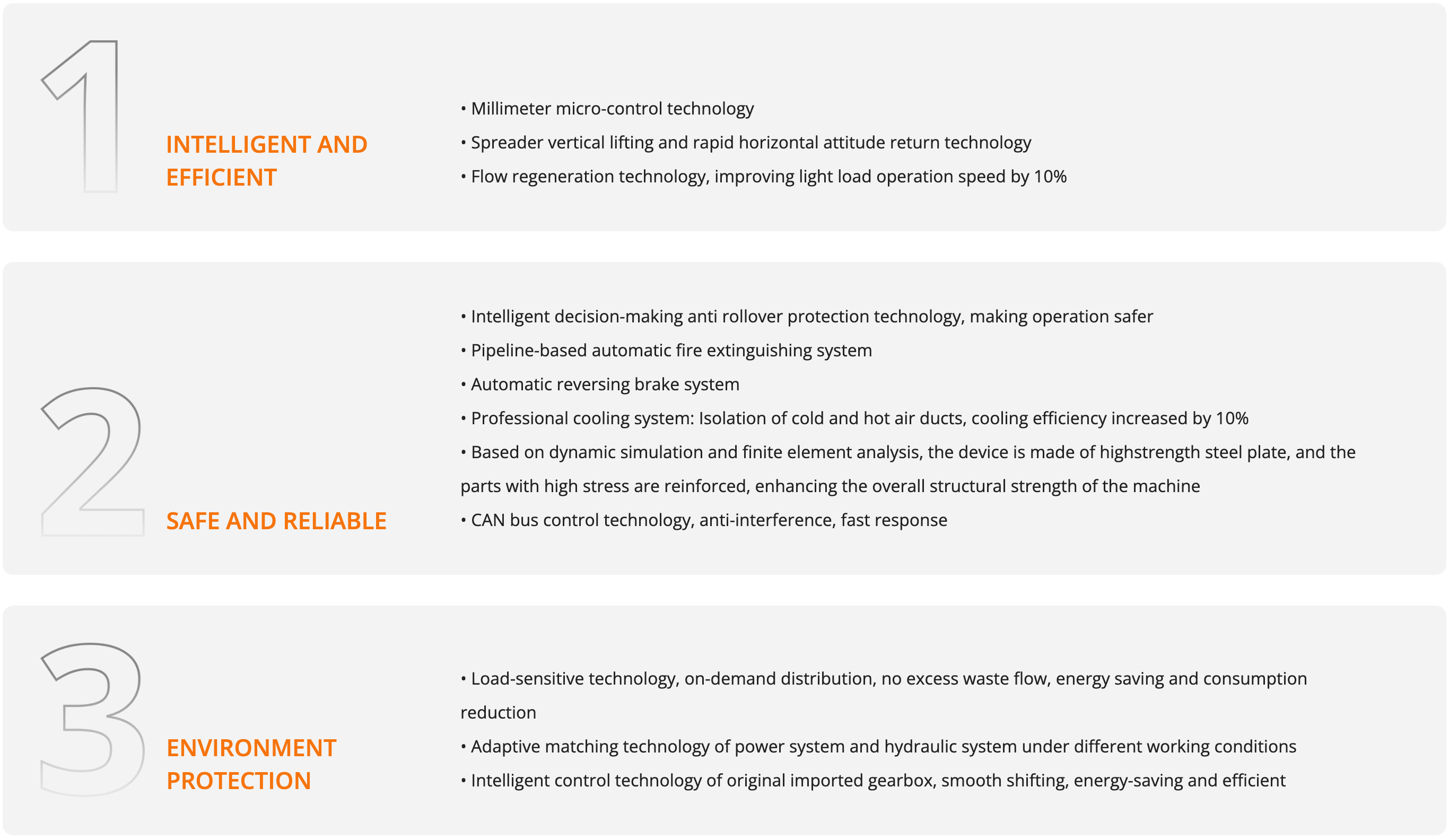

Product Features

Technical Parameters

Construction Cases

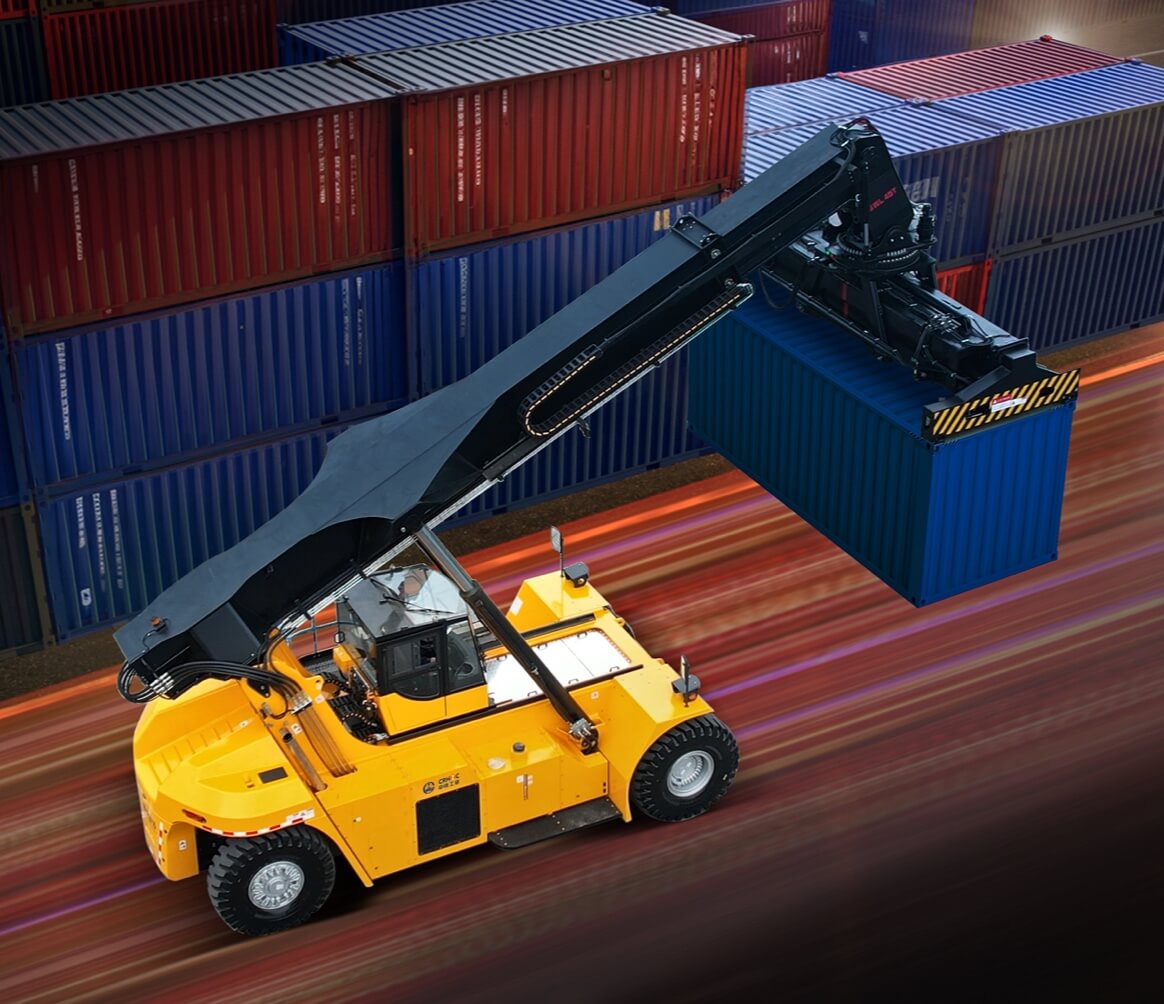

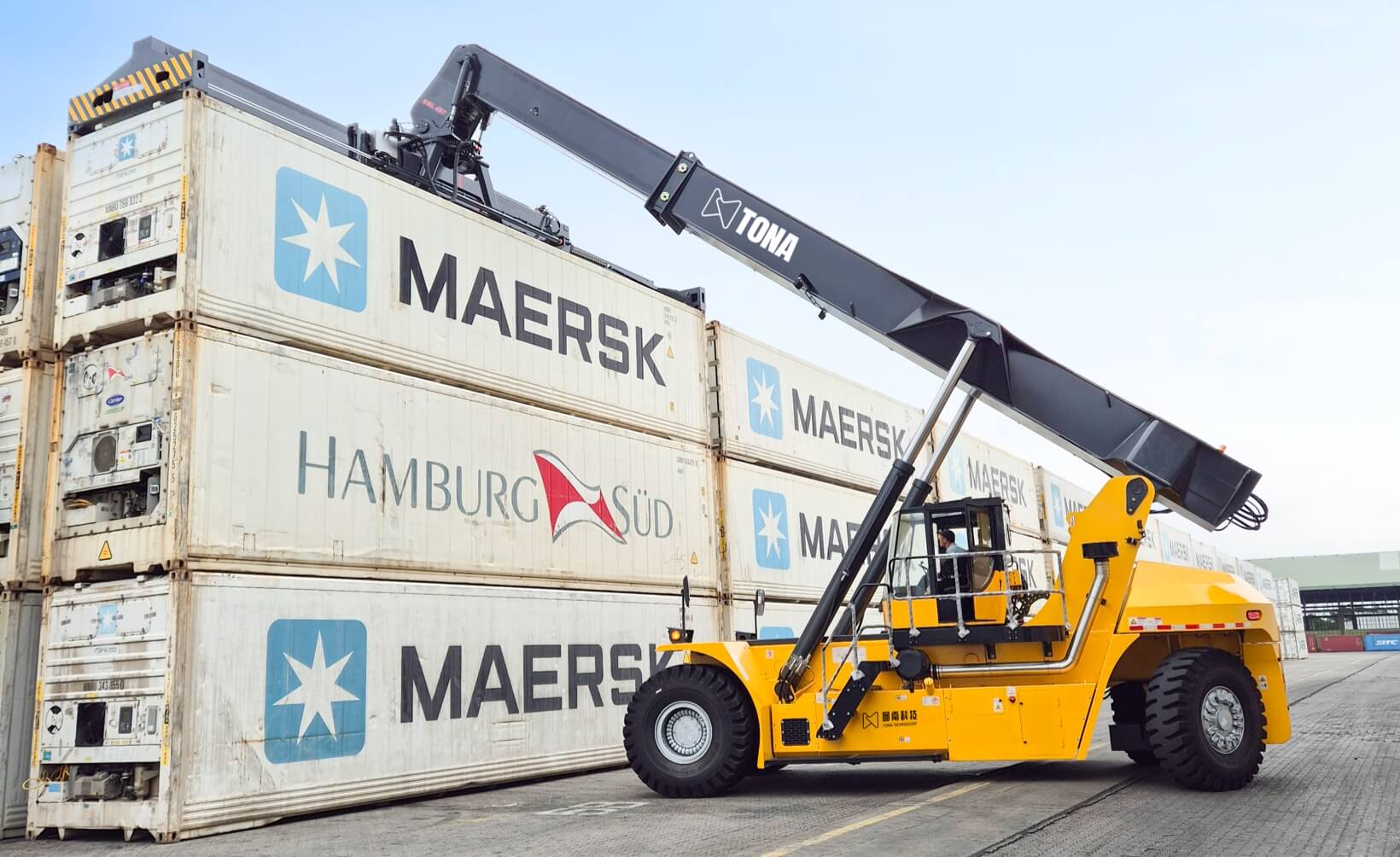

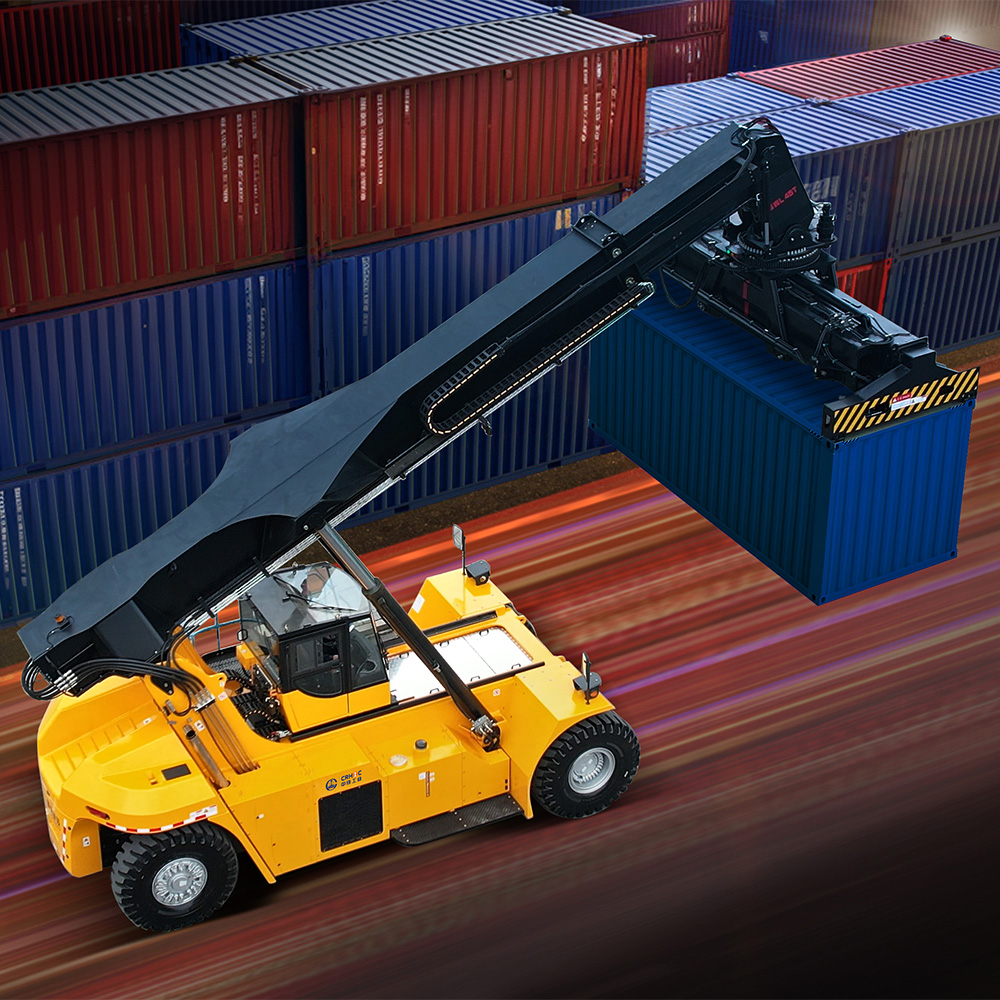

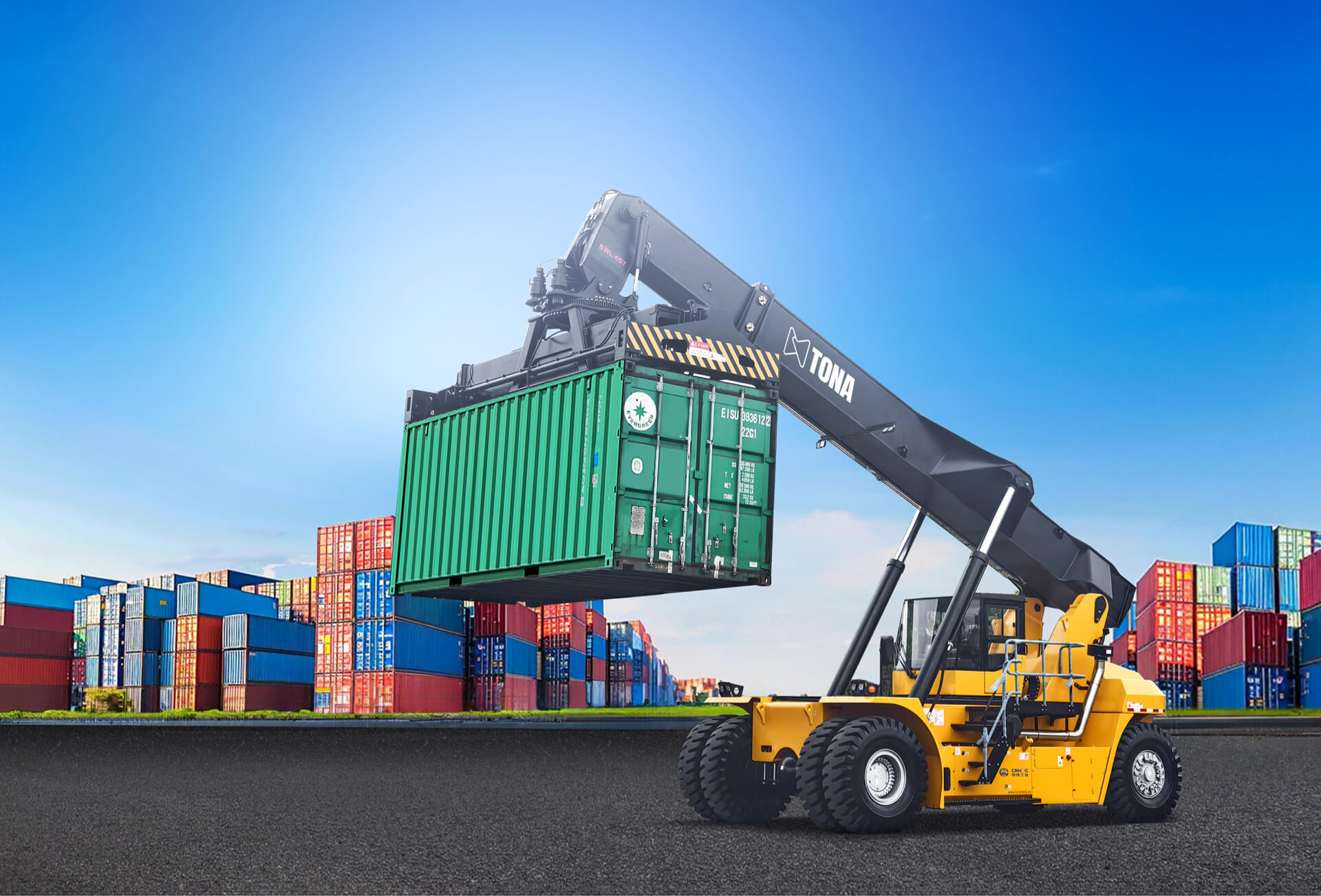

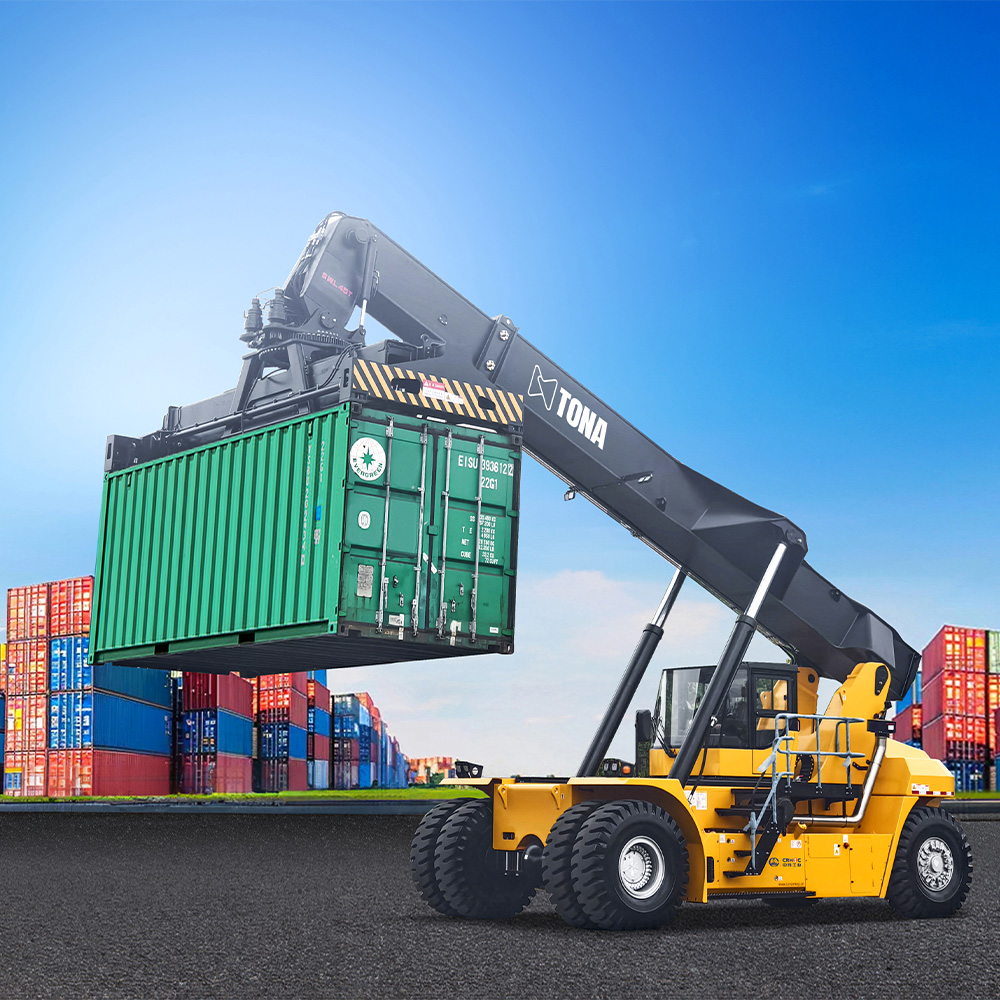

TONA Reach Stacker is a special engineering machine for loading, unloading and stacking 20/40ft containers, and advantaged by high safety, reliability and flexibility, easy operation and good maintainability. It is applicable to small and medium-sized ports, rail transit stations and road transit stations, and can also be used as auxiliary transfer equipment in large container terminals. With different attachments, the Stacker can also handle and dump bulk containers, as well as lifting wind turbine towers, steel pipes and other objects.

TECHNICAL PARAMETER

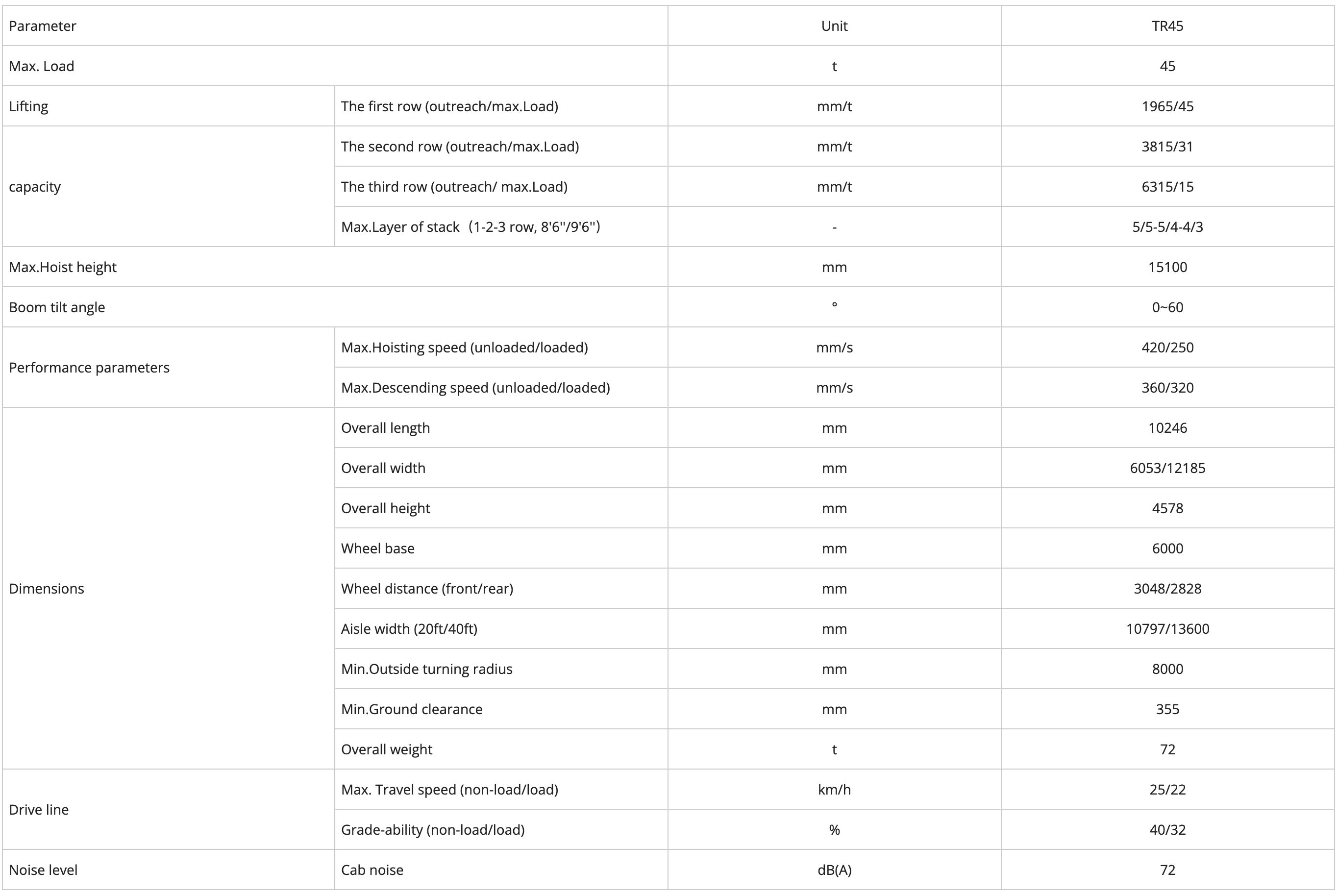

parameter			Unit	TR45
Max.Load			t	45
Lifting	The first row（outreach/max.Load）	mm/t	1965/45
capacity	The second row（outreach/max.Load）	mm/t	3815/31
		The Third row（outreach/max.Load）	mm/t	6315/15
		Max.Layer of stack（1-2-3-row,8′6″/9′6″）	-	5/5-5/4-5/3
Max.Hoist height			mm	15100
Boom tilt angle			。	0-60
performance parameters	Max.Hoist speed（unload/loaded）	mm/s	420/250
performance parameters		Max.Descending speed（unload/loaded）	mm/s	360/320
Dimensions	Overall length	mm	10246
		Overall width	mm	6035/12185
		Overall height	mm	4578
		Wheel base	mm	6000
		Wheel distance（front/rear）	mm	3048/2828
		Aisle width（20ft/40ft）	mm	10797/13600
		Min.Outside turning radius	mm	8000
		Min.Ground clearance	mm	355
		Overall weight	t	72
Drive line	Max.Travel speed（non-load/load）	km/h	25/22
Drive line		Grade-ability（non-load/load）	%	40/32
Noise level	Gab noise	d8(A)	72

TECHNICAL PARAMETER

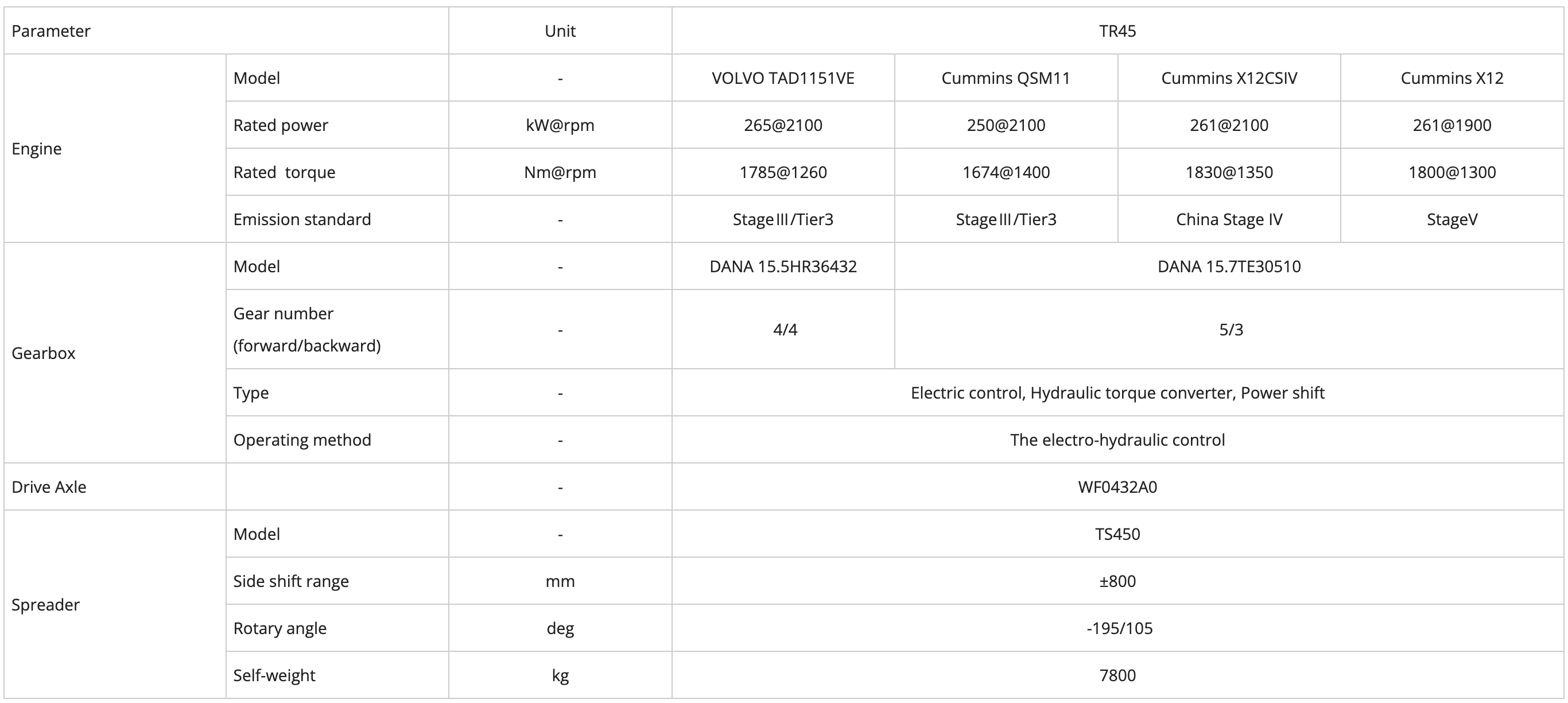

parameter		unit	TR45
Engine	Model	-	VOLVO TAD1151VE	Cummins QSM11	Cummins X12CSIV	Cummins X12
		Rated power	kW@rpm	265@2100	250@2100	261@2100	265@1900
		Rated torque	Nm@rpm	1785@1260	1674@1400	1830@1350	1800@1300
		Emission standard	-	Stage III/Tier3	Stage III/Tier3	China Stage Ⅳ	Stage V
Gearbox	Model	-	DANA 15.5HR36432	DANA 15.7TE30510
		Gear number (forward/backward)	-	4/4	5/3
		Type	-	Electric control,Hydraulic torque converter,Power shift
		Operating method	-	The electro-hydraulic control
Drive Axle		-	WF0432A0
Spreader	Model	-	TS450
		Side shift range	mm	±800
		Rotary angle	deg	-195/105
		self-weight	kg	7800

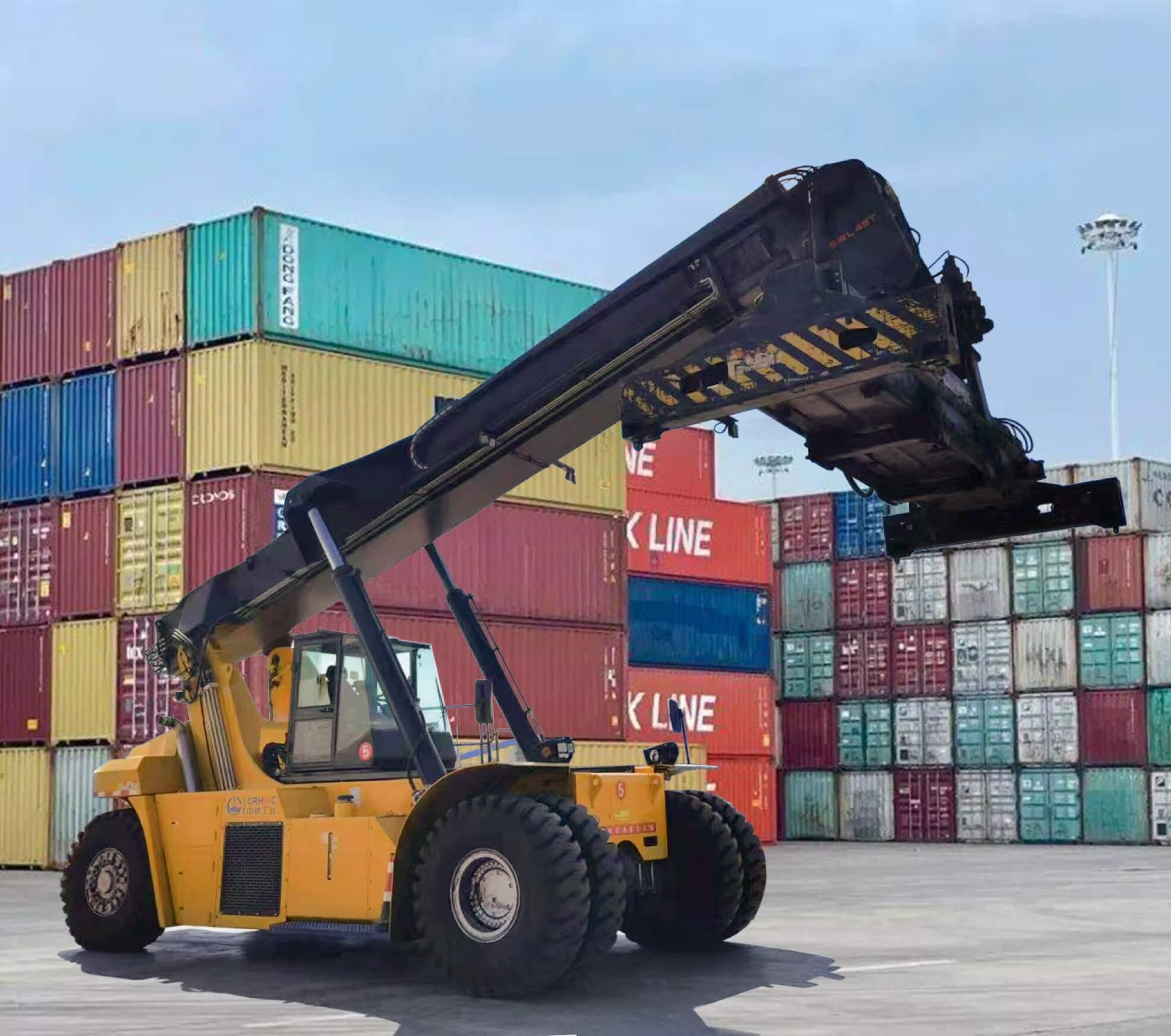

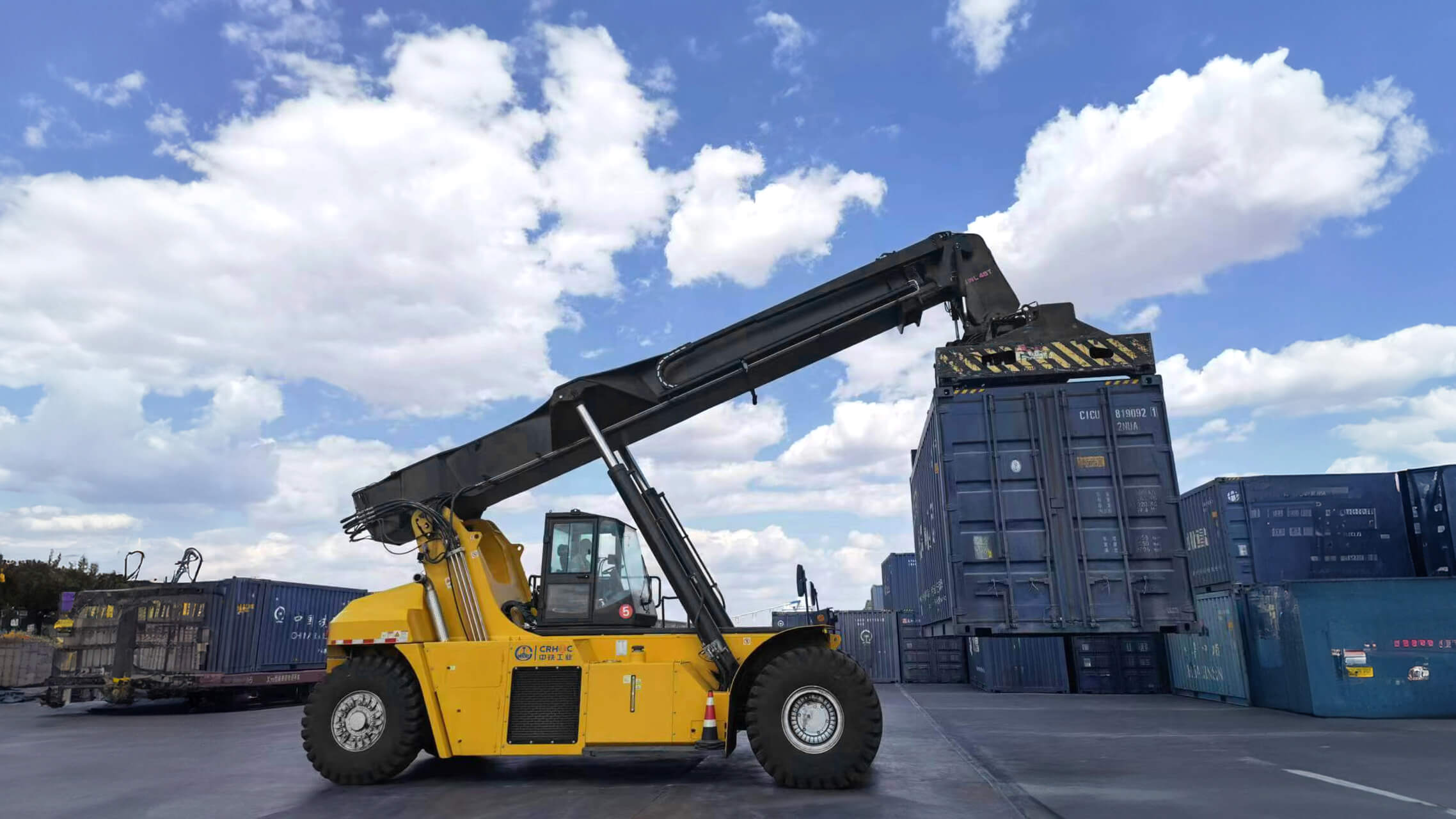

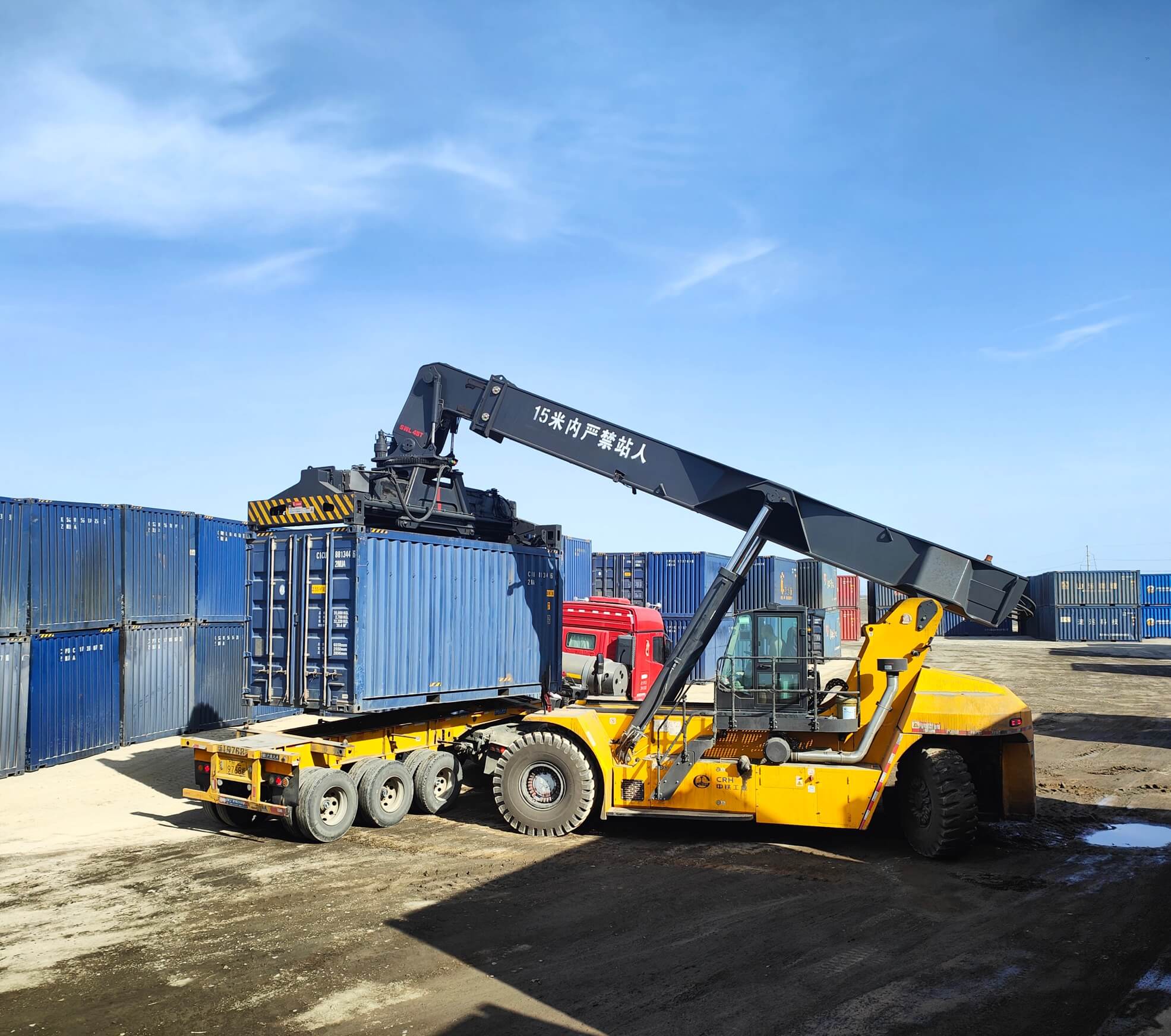

CONSTRUCTION CASES
