Have you ever wondered how ports move massive containers so quickly? Reach stackers are the machines behind the magic, combining power and precision to handle heavy loads. Learning how to operate a reach stacker is critical for safety and efficiency. Mistakes can cause accidents, equipment damage, or delays in port operations. This guide is made for port workers, warehouse staff, and logistics personnel. In this post, you’ll learn how to operate a reach stacker safely and step by step, even if you're just starting out.

What Is a Reach Stacker and How Does It Work?

Reach Stacker Definition and Purpose

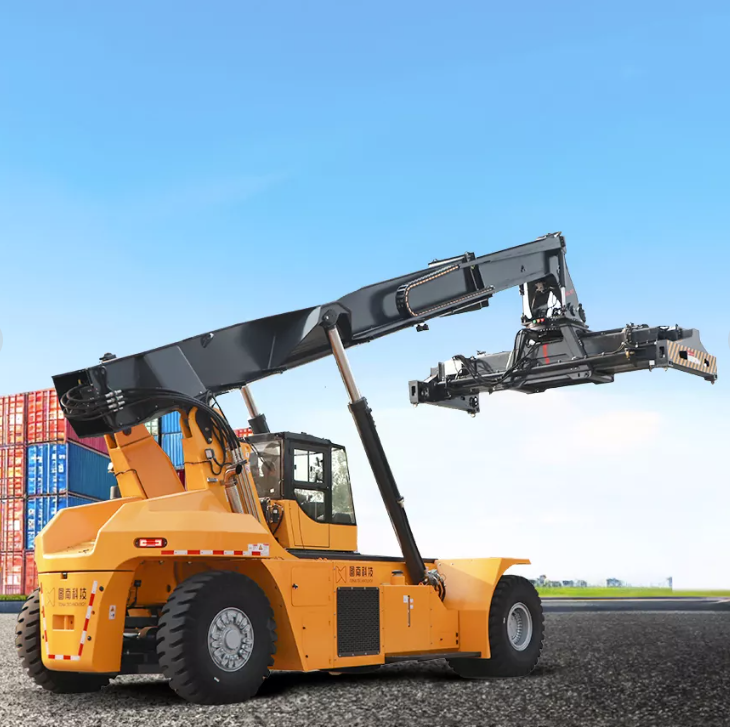

A reach stacker is a big, powerful machine. You’ll see it moving containers in ports, rail yards, and warehouses. It’s built for tough jobs — lifting, stacking, and shifting heavy shipping containers fast. Operators love it because it’s flexible. It can reach further and stack higher than most forklifts.

Unlike forklifts, which lift from the bottom, reach stackers grab containers from the top. They’re also faster in tight spaces. Compared to gantry cranes, reach stackers take up less room and cost less to run. Straddle carriers can move tall stacks, but they aren’t as easy to control. That’s why reach stackers are so popular in busy terminals — they give you speed, height, and control.

Here’s a quick comparison:

Key Components and Mechanisms

At the center of every reach stacker is its boom. This isn’t just any arm — it’s a telescopic boom. That means it can stretch out or pull in, depending on how far the container is. The boom moves smoothly to reach containers in front or even in the second or third row. That’s something a basic forklift just can’t do.

Attached to the boom is the spreader. Think of it like a giant hand. It grips the top of the container using twistlocks — mechanical pins that lock into place. Once all four twistlocks engage, the machine is ready to lift. No clicks? No lift. Safety comes first.

A good reach stacker isn’t just strong — it’s precise. These machines can lift anywhere between 10 and 46 tons. That’s like lifting 20 elephants. They can also stack containers up to six high. That vertical power helps save ground space, which is priceless in crowded ports.

Everything works together — the boom, the spreader, and the twistlocks. They make heavy lifting feel simple, even in the busiest shipping yards.

Pre-Operational Checks Before Using a Reach Stacker

What to Inspect Before Starting

Before turning the key, a few checks can prevent big problems. The first thing you’ll want to do is look under the hood — literally. Check the hydraulic oil, engine oil, and coolant levels. Low fluids can damage the engine or reduce lifting power. No one wants that mid-shift.

Next, glance at the tire pressure. Uneven or soft tires can cause balance issues. A flat tire on a loaded reach stacker is dangerous. Now look inside the cab. Is the fire extinguisher there? Is it full? That little red bottle might save lives one day.

Don’t forget to test your brakes, horn, and lights. Push the pedals. Tap the horn. Flip the switches. If something doesn’t work, don’t operate the machine. Report it.

Here’s a basic checklist you can follow:

How to Perform a Safety Walkaround

Start by walking slowly around the reach stacker. Look at the cab — is the seatbelt working? Any broken glass? Then move to the lift arms and attachments. Check for loose bolts, rust, or cracks. If anything looks worn or damaged, report it right away.

Now crouch near the tires. Are they even? Do they show deep cuts or uneven wear? Reach stackers need strong tires to carry heavy loads. Don’t skip this step.

Before hopping into the driver’s seat, scan the ground around the machine. Look for obstacles, debris, or uneven surfaces. A rock under a tire or a dip in the road can throw the machine off balance when it’s loaded.

If it's dark or foggy, make sure all mirrors and cameras are clean. Visibility is everything when you're lifting something that weighs more than a truck. One last check — make sure no one is nearby before you power up. It’s better to take a few extra seconds than cause an accident.

Understanding Reach Stacker Controls and Functions

Basic Operational Controls

Once you’re in the driver’s seat, you’ll notice several key controls. The most important one is the directional rocker switch. It controls whether the machine moves forward or backward. Just press it gently in the direction you want to go.

To steer, use the steering handle. It’s smooth and responsive — like driving a massive joystick. You’ll also find speed control built into that handle. Go slow in tight areas. Some models even have crawl mode, perfect for inching into position.

For lifting and lowering the container, there are buttons on the main panel. Tap lift to raise the boom. Press lower when you’re ready to drop it down. It’s easy to learn, but don’t rush it. Small, steady movements are best when handling 40-ton loads.

Safety Controls and Indicators

Reach stackers are strong, but they’re also smart. Safety features help stop problems before they start. The emergency stop switch is your lifeline. It’s usually red, big, and easy to hit. Push it if anything feels wrong. The engine cuts off instantly.

Look near the dashboard and you’ll see the twistlock engagement lights. These show if all four twistlocks are fully engaged. If even one isn’t locked, don’t lift. The light will stay off. That’s a warning — not a suggestion.

Sometimes, the spreader doesn’t line up perfectly. That’s when the “BYPASS” button might be used. But only in rare cases. Never press it unless you’ve checked for obstructions and confirmed it’s safe. It’s a backup, not a shortcut.

Operators must watch these indicators closely. They’re not just lights and buttons — they protect you, the machine, and everything around it.

How to Operate a Reach Stacker Step-by-Step

Starting the Machine

Before doing anything heavy, warm up the engine for a few minutes. Let the fluids move, the hydraulics settle. Don’t rush — cold starts can damage parts over time. While waiting, climb in safely. Always face the machine, keeping three points of contact — two feet and one hand, or the other way around.

Buckle your seatbelt. It’s not just a rule; it’s a lifesaver. Once seated, check the cab’s position. Adjust it forward, backward, or higher depending on your visibility needs. If you're working with tall stacks, a raised cab makes a big difference.

Lifting and Stacking Containers

Begin by aligning the spreader with the container. Lower it slowly until it sits flush. Once it’s in place, the twistlocks will engage — wait for the indicator lights to confirm all four are locked.

Lift steadily. No sudden jerks. If the load shifts, stop and lower it immediately. Always keep the container level — unbalanced loads can tip the machine or damage cargo. Watch the load meter. Stay in the green zone; never guess the container’s weight.

Here’s a quick reminder of stacking basics:

Moving and Placing Containers

Now comes the tricky part — moving with a lifted container. Keep the boom retracted when driving. This lowers the center of gravity and boosts stability. Don’t extend the boom unless you're stopped.

Maintain a container travel height of about 3 meters. That’s high enough to clear obstacles, but low enough to stay safe. Never carry a box too high unless you’re stacking it.

Avoid making side shifts or telescoping moves while in motion. Those adjustments can cause the load to sway or the boom to drift. If you need to shift the box, stop the machine first, then move the spreader. Keep the ride steady, and always scan your path for people or debris.

Safety Tips and Common Mistakes to Avoid

Top Safety Protocols

Safety isn’t just a checklist — it’s a habit. One golden rule? Never walk under a lifted container. Even if it looks stable, even if the twistlocks are engaged. One small slip, and the risk becomes real.

Always keep clear communication with ground staff. Use hand signals, radios, or spotters. Don’t rely on assumptions. If you’re unsure what someone’s doing, stop the machine and ask.

Driving on slopes? It’s a different game. On a hill, always move in the direction of the slope — straight up or straight down. Avoid turning sideways on an incline. That’s how machines tip. And never go downhill in neutral. Use a proper gear and let the brakes do their job.

Here’s a quick reminder:

Common Operator Errors

Even skilled drivers can make mistakes. One big one? Sudden braking or starting. This can shake the load or damage the boom. Be smooth — treat the controls like they’re full of water.

Another common slip-up: Shifting gears without stopping. It may save a second, but it wears out the transmission and risks a breakdown.

Then there’s parking on a slope without securing the machine. Always use the parking brake, and for longer stops, block the wheels with a chock. If the ground isn’t level, even a small roll can lead to disaster.

Watch out for these mistakes:

Conclusion

Operating a reach stacker safely requires more than just knowing the controls. It takes training, awareness, and discipline every single time you get behind the wheel. Whether you’re stacking two containers or six, safety always comes first.

Make sure you’re certified and keep that certification up to date. Stick to regular maintenance checks and report any issues immediately. A well-maintained machine works better — and keeps everyone safer. Reach stackers play a huge role in container logistics. When used responsibly, they keep the workflow smooth and the job site safe.

FAQ

Q: Can anyone operate a reach stacker?

A: No. Operators must be properly trained and certified, especially for machines over 3 tonnes.

Q: What’s the maximum load a reach stacker can lift?

A: Most reach stackers can lift between 10 to 46 tons, depending on the model and boom reach.

Q: How is a reach stacker different from a forklift?

A: Reach stackers lift containers from the top using a boom and twistlocks, while forklifts lift from the bottom.

Q: How often should a reach stacker be serviced?

A: Daily visual checks are required, and full servicing follows the manufacturer’s maintenance schedule.

Q: Is a license required globally or only in certain regions?

A: Licensing requirements vary by country. For example, Australia requires an RS High Risk Work Licence.
