Products
Reach Stacker
Rated load
40t/20t (The 1st row / The 2nd)
Wheel base
6000mm
Overall weight
58t
Applicable Place
Railway Transfer Stations, Ports, Docks
Inquire

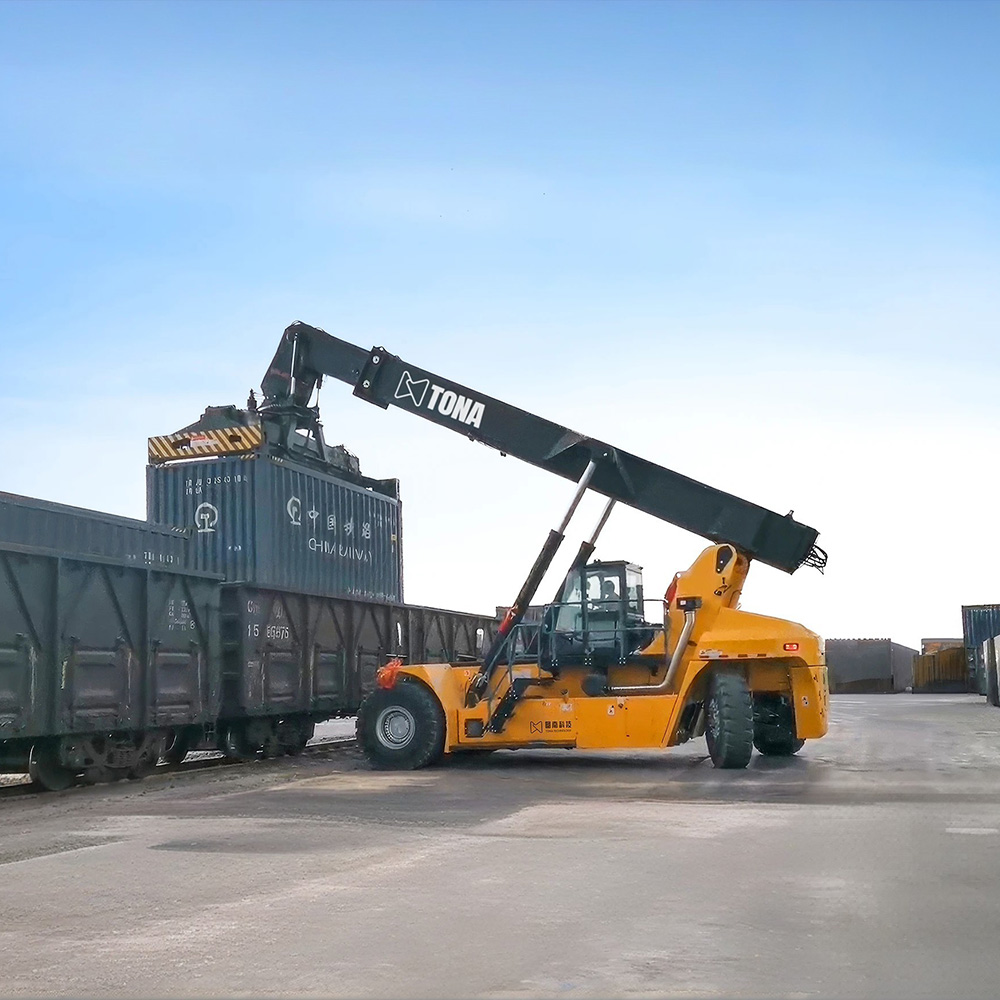

To meet customer and market demands, Tona Technology has developed a high-quality, high-performance, and high-configuration railway Reach Stacker, tapping into the potential for lightweight, economical, and compact designs in railway applications. With a total weight of only 58 tons and a maximum lifting capacity of 40 tons, the TRT40 offers the advantages of being lightweight, compact, highly maneuverable, and cost-effective. Its strong adaptability to various site conditions makes it ideal for efficient relocation and versatile operations.

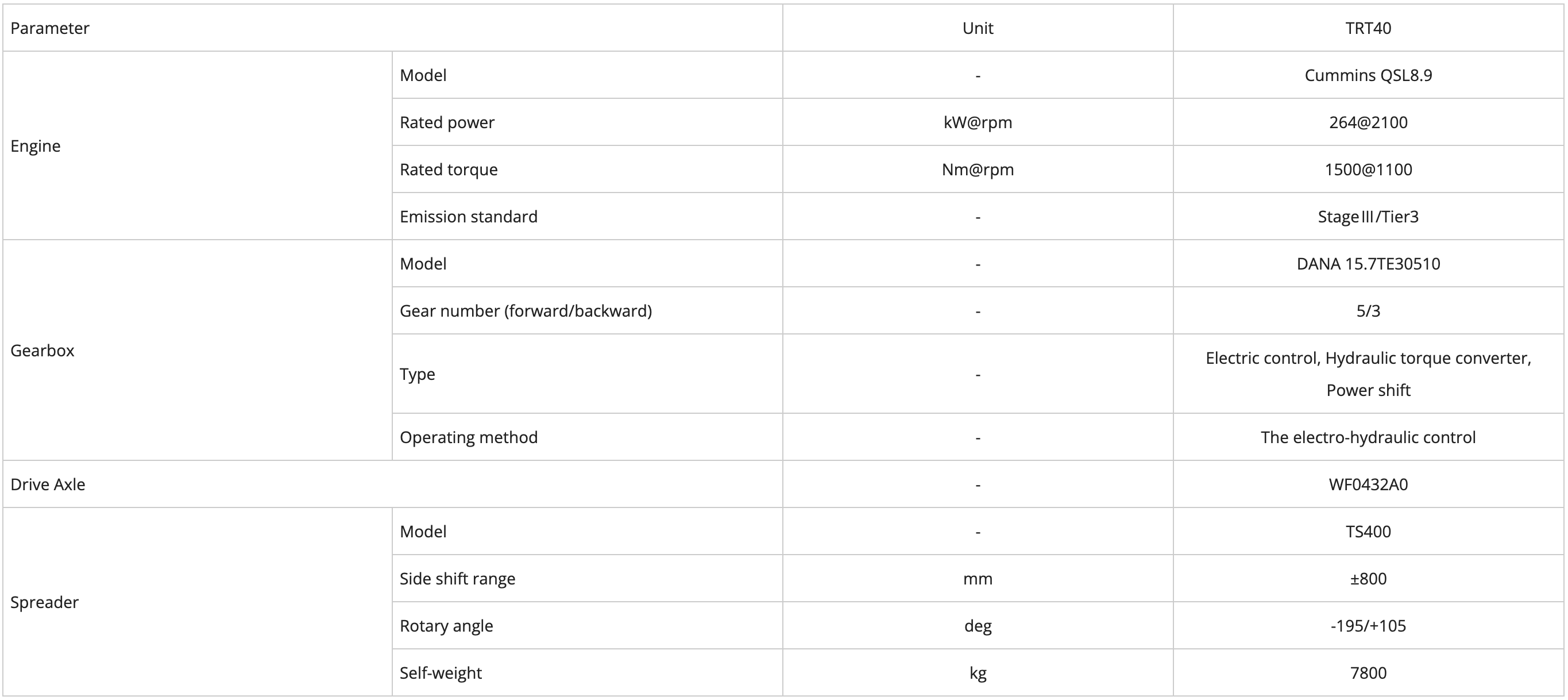

TECHNICAL PARAMETER

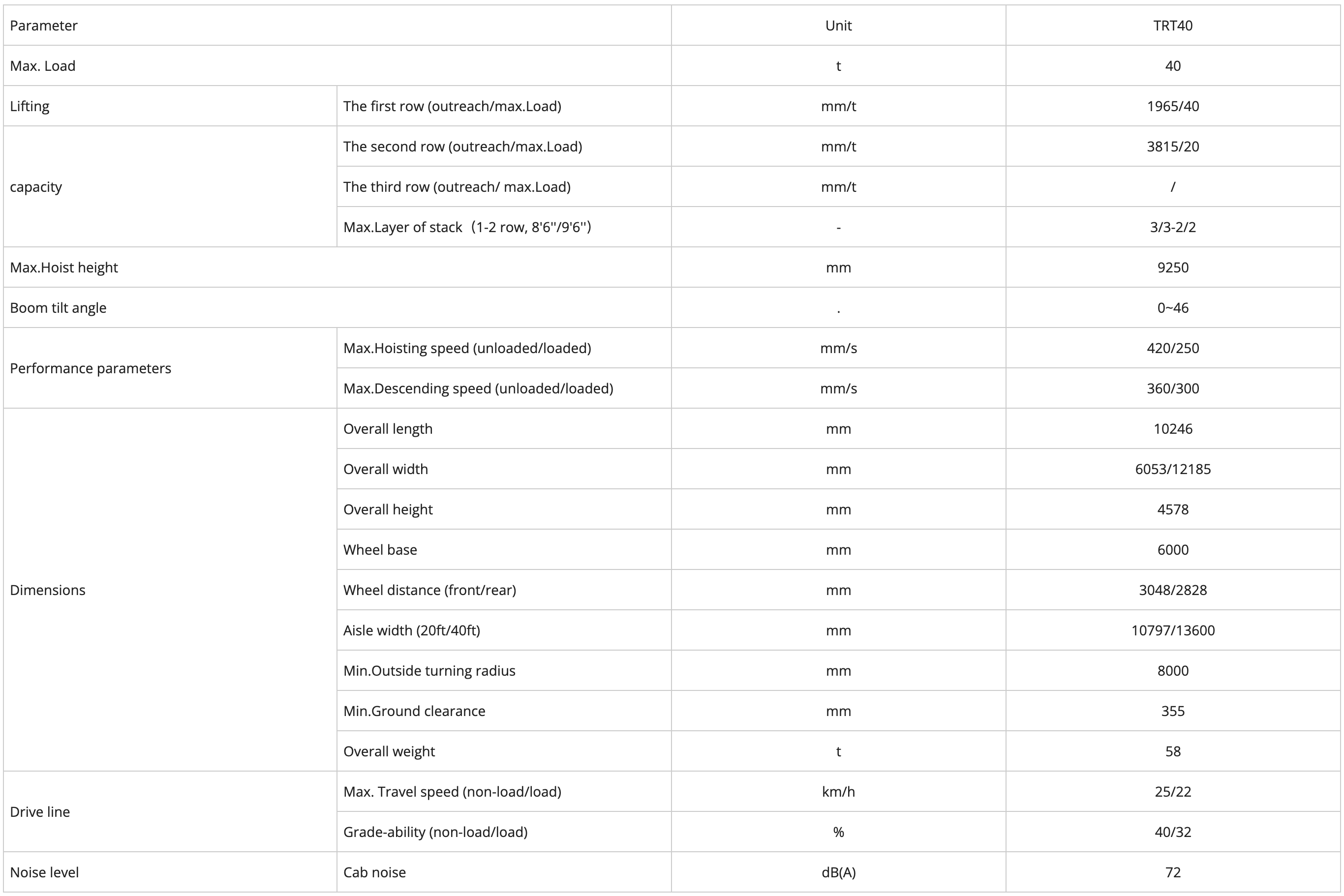

TECHNICAL PARAMETER

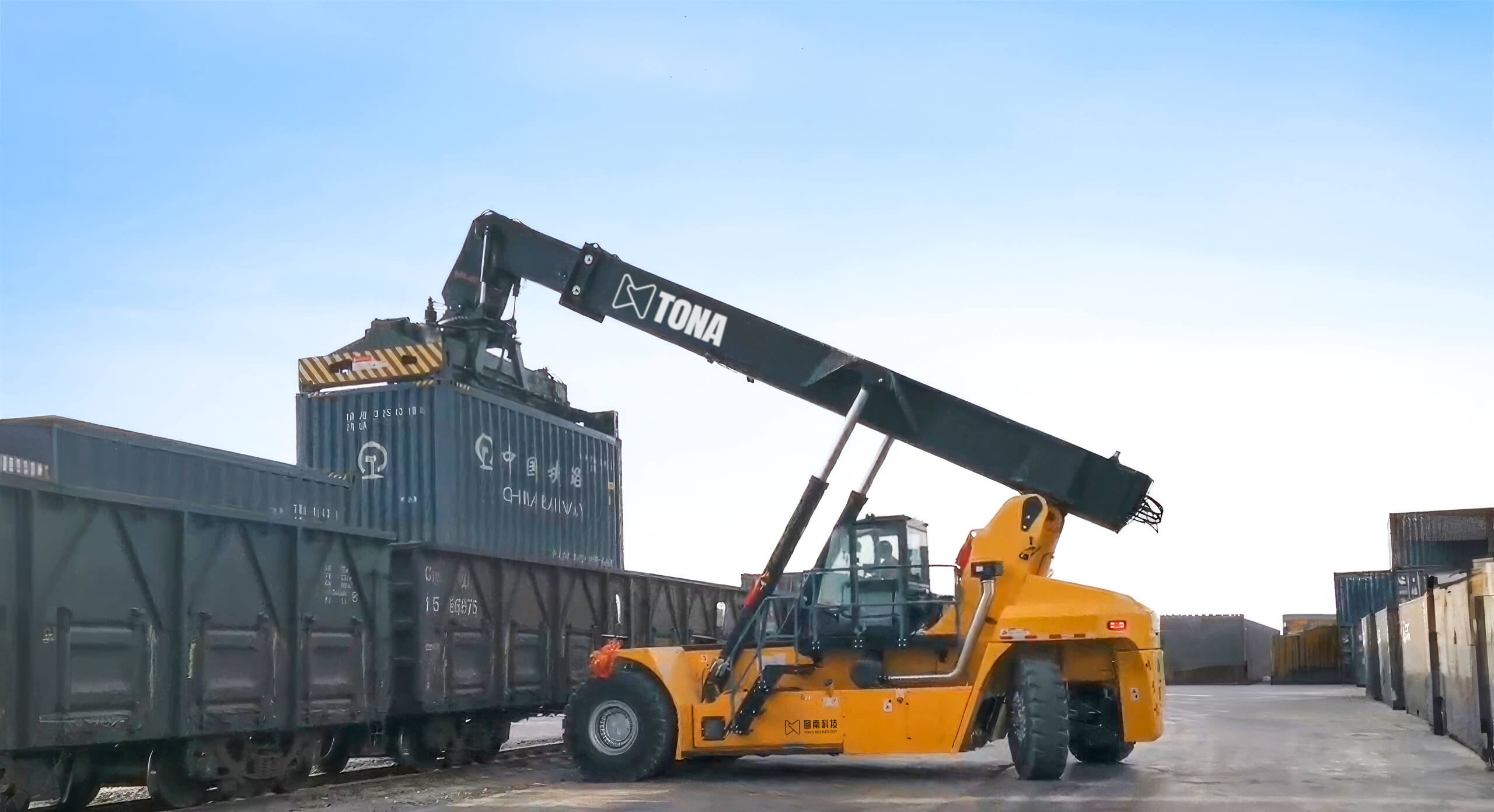

CONSTRUCTION CASES
