Applicable Product
quay cranes, gantry cranes, ship cranes
Container spec.
20ft
Rated load
42t
Weight
≤ 15T

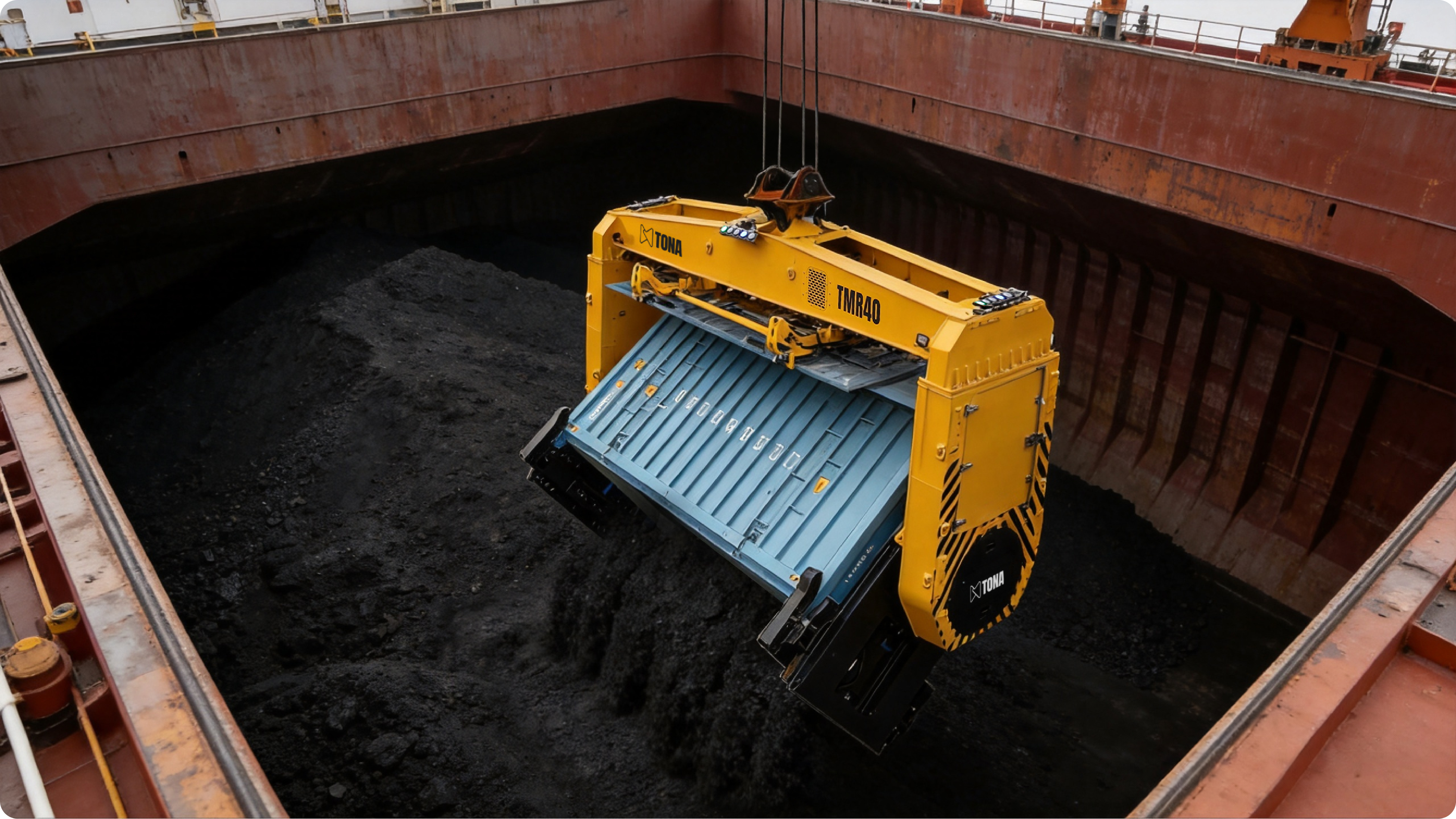

The closed container with a lid is transported in a fully sealed manner, ensuring no spillage, leakage, or dust pollution during transit. This spreader is specifically designed for lidded containers. During operation, it first automatically and smoothly opens the lid, then rotates forward to discharge bulk materials, enabling rapid unloading of bulk cargo from the container.
The equipment is compatible with quay cranes, gantry cranes, ship cranes. It features long mean time between failures (MTBF), outstanding stability and reliable performance.
Equipped with mature hydraulic and electrical control systems, it supports automated sequential actions including lid opening, material tipping and resetting. Multiple safety interlock devices are installed to prevent misoperation and avoid equipment collision risks. Compact structural layout delivers high operation efficiency while facilitating routine inspection and maintenance. It can adapt to various working conditions at terminals and bulk cargo yards, effectively cutting unloading cycle time and lowering overall operational costs.
INTELLIGENT AND EFFICIENT
• The spreader adopts a fast attachment mode, and can be switched with the principal machine within 2 mins
• Shaking function can be configured to solve the problem of bulk cargo adhesion and incomplete unloading, reducing material loss
• The spreader can be wirelessly controlled through a remote control, and also can be operated with buttons that are set in the cab, which is convenient and fast
SAFE AND RELIABLE
• The spreader is equipped with five color lights, which can indicate positioning, twist-locking, container holding and other operations in real time, directly guiding the operator.
• The twistlock system is fitted with ISO floating twistlock , Provides Dual Mechanical and Electronic Protection
• The spreader must be lifted to the specified height before rotating operations can be carried out, ensuring safe and worry-free operation
• When operating in complex terrain, containers are prone to angular deviation. The left and right rotating mechanism automatically compensates for the rotation angle, eliminating angular errors and making rotating operations safer and more reliable.
ENVIRONMENT PROTECTION
• No bulk cargo falls to the ground in the handling process, without loss
• Lidded containers are fully enclosed throughout transport, ensuring no spillage, no leakage, and no dust pollution during material transfer.
TECHNICAL PARAMETER
| Item | TMR40 | Dead weight of the spreader | ≤ 15T |
| Applicable container type | 20ft | Rotating angle | -10-220° |
| Applicable principal machine | quay cranes, gantry cranes, ship cranes | Rotating time | 60s |
| Rated capacity | 38t | Twistlock technology | ISO floating twistlock |
