Electric Empty Container Handler
Maximum Stacking Layers
6/7/8
Rated load
9t
Wheel base
4550mm
Applicable Place
Ports, Docks

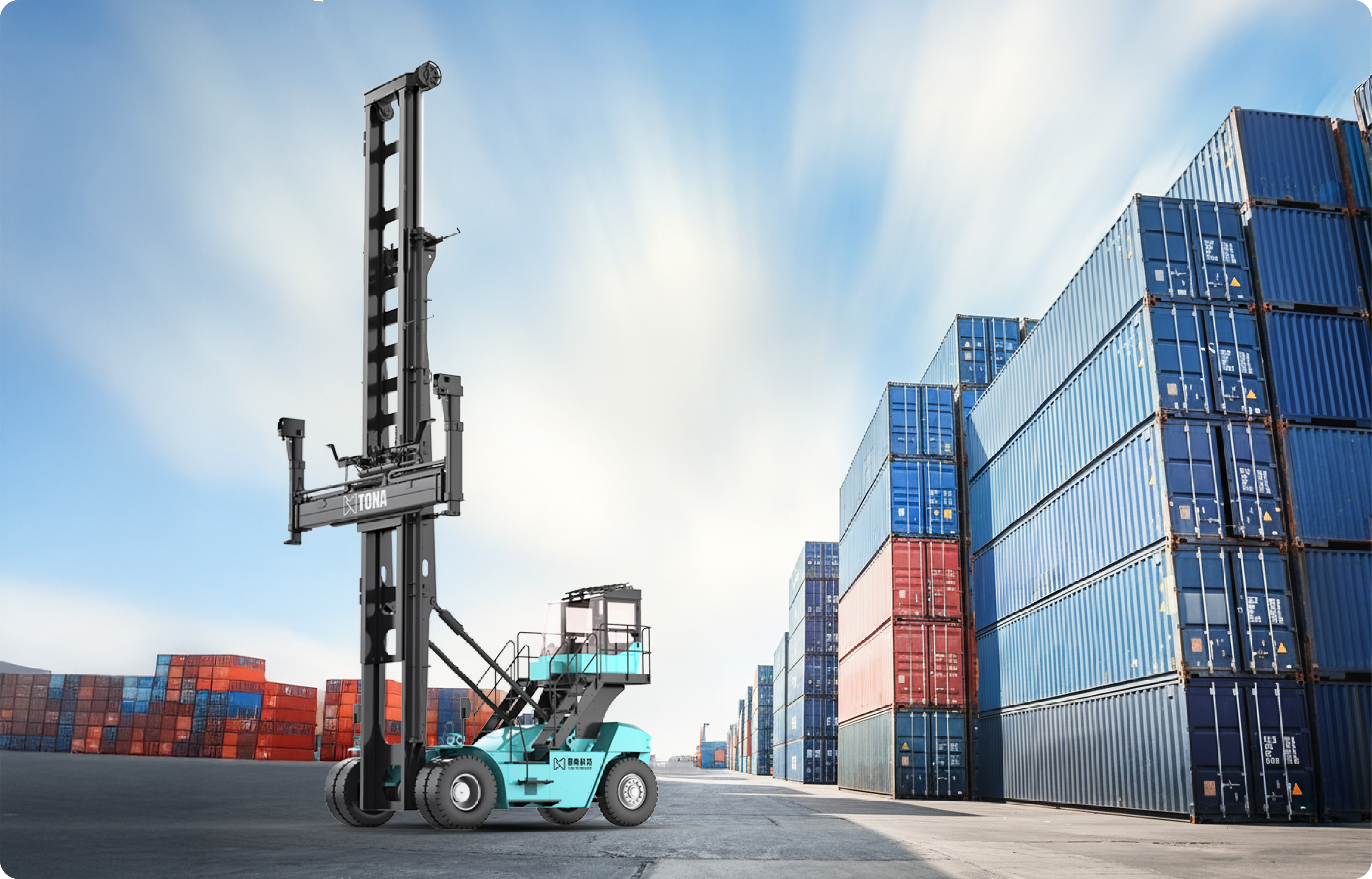

Designed for 20'/40' container operations, the TCH90E series empty container handler combines customized high-torque motors with CATL lithium batteries and an external preheating system for superior power and energy efficiency. Featuring a safe layout with high/low voltage isolation, anti-overturning protection, and dual automatic fire suppression systems, it ensures exceptional safety, reliability, and maintenance convenience for efficient port and yard operations.
HIGH ENERGY
• Pedestrian Recognition + Reverse Assist Braking System
• Pipeline-type automatic fire suppression system
• Dynamics simulation and FEA reinforce high-stress areas, enhancing overall structural strength.
EFFICIENT
• Smart Decision-Making Anti-Overturning Protection: Ensures safe and highly efficient operation.
• Automated Fault Detection and Real-Time Data Display: Provides instant diagnostics and system status.
• Automatic Reverse Braking System: Activates alerts and initiates braking automatically when reversing.
• Professional Cooling System: Features separated hot and cold air channels, increasing heat dissipation efficiency by 10%.
• CAN Bus Control Technology: Offers strong interference resistance and fast response times.
SAFETY
• Load-sensing system delivers power on demand, eliminating excess flow for reduced energy consumption.
• Adaptive matching technology that automatically optimizes the powertrain and hydraulic systems for different working conditions.
• Ultra-low emission, energy-efficient, and environmentally friendly power source is equipped as standard.
TECHNICAL PARAMETER
| Parameter | Unit | TCH90K7E Series | |
| Overall weight | t | 42 | |
| Lifting Performance | Rated Load Capacity | t | 9 |
| Maximum Stacking Layers | - | 7 (8’6”)With the option of 6 or 8 layers | |
| Maximum Lifting Height | mm | 18750 | |
| Operational Parameters | Maximum Lifting Speed (Unloaded/Loaded) | mm/s | 600/550 |
| Maximum Lowering Speed (Unloaded/Loaded) | mm/s | 550/600 | |
| Overall Dimensions | Overall Length | mm | 6900 |
| Wheelbase | mm | 4550 | |
| Load Center Distance | mm | 1220 | |
| Front Overhang | mm | 1250 | |
| Overall Height (Lowest/Highest Mast Position) | mm | 10920/19170 | |
| Minimum Ground Clearance (Unloaded) | mm | 330 | |
| Min. hoisting Height | mm | 2205 | |
| Cab Top Height | mm | 4735 | |
| Overall Width (Spreaded Retracted/Spreaded Extended) | mm | 6085/12215 | |
| Front Wheel Distance | mm | 3280 | |
| Rear Wheel Distance | mm | 2165 | |
| Mast Tilt Angle (Forward/Backward) | ° | 2/4 | |
| Minimum Outside Turning Radius | mm | 6000 | |
| Aisle Width for 20’Container | mm | 9955 | |
| Aisle Width for 40’ Container | mm | 14585 | |
| Power Performance | Maximum Travel Speed (Unloaded/Loaded) | km/h | 25/23 |
| Gradeability (Unloaded/Loaded) | % | 25/20 |
CONFIGURATION PARAMETER
| Parameter | Unit | TCH90K7E Series | ||
| Battery Brand | - | CATL | ||
| Motor Model | - | Permanent Magnet Synchronous Motor | ||
| Charging Time | min | 70 | ||
| Operating Time | h | 12 | ||
| Battery Capacity | kW·h | 350 | ||
| Drive Axle | - | Fuwa WF0478A0/ KESSLER D81 | ||
| Spreader | Model | - | TS90 | |
| Side-Shifting Distance | mm | ±600 | ||
| Self Weight | kg | 4400 | ||
| Applicable Range | - | ISO 20’/40’containers | ||
| Tire | Front Wheel /Quantity | - | 14.00-24 28PR/4 | |
| Rear Wheel /Quantity | - | 14.00-24 28PR/2 | ||
| Tire Pressure | Mpa | 1.05 | ||
